Ignition Switch: Installation

INSTALL IGNITION SWITCH ASSEMBLY
1. Install the ignition switch with the 2 screws.

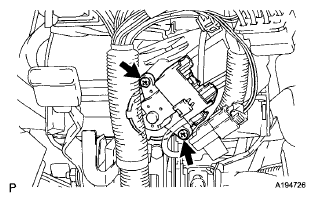

  Fig 1: Locating Ignition Switch With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the claw to connect the key interlock solenoid wire harness connector to the ignition switch connector.
3. Connect the ignition switch connector.

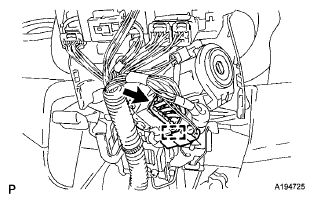

  Fig 2: Identifying Ignition Switch Assembly Claw And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER STEERING COLUMN COVER
1. Attach the 4 claws to install the lower steering column cover.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

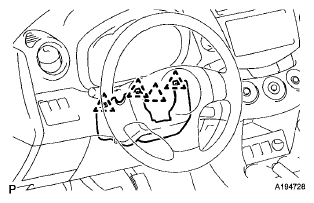

Fig 3: Identifying Lower Steering Column Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
