Engine Switch: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
    1. Remove the air conditioning control (See REMOVAL ).
  3. REMOVE ENGINE SWITCH
    1. Disconnect the switch connector.

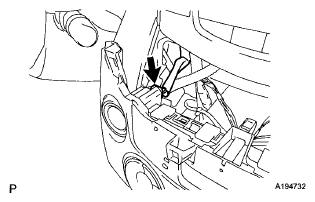

      Fig 1: Locating Switch Connector
      G05999268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the engine switch.
