Engine Switch: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the engine switch.

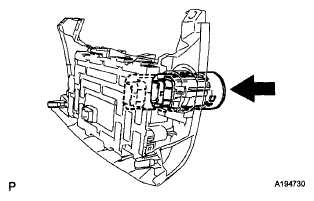

      Fig 1: Locating Engine Switch Claws
      G05999272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the switch connector.
  2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Install the air conditioning control (See AIR CONDITIONING PANEL (FOR AUTOMATIC AIR CONDITIONING SYSTEM) ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    Fig 2: Locating Switch Connector
    G05999268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
