Engine Switch: Inspection

INSPECT ENGINE SWITCH

Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

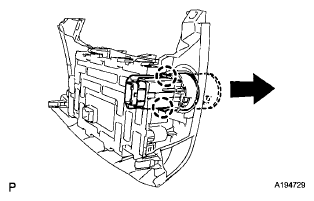

Fig 1: Locating Engine Switch Claw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

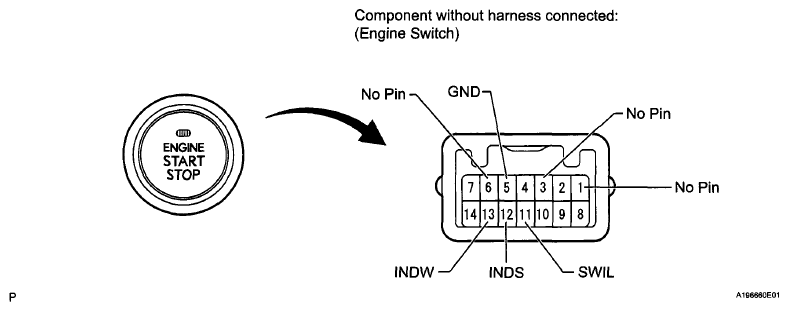

Fig 2: Identifying Terminals Of Engine Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the engine switch assembly.

Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.

HINT:

If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator will not illuminate.

If the voltage is too low, the indicator will not illuminate.

MEASUREMENT CONNECTION SPECIFIED CONDITION CHART

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 11 (SWIL) Battery negative (-) → Terminal 5 (GND)	Illuminates (illumination of lettering)
Battery positive (+) → Terminal 12 (INDS) Battery negative (-) → Terminal 5 (GND)	Illuminates (green)
Battery positive (+) → Terminal 13 (INDW) Battery negative (-) → Terminal 5 (GND)	Illuminates (amber)

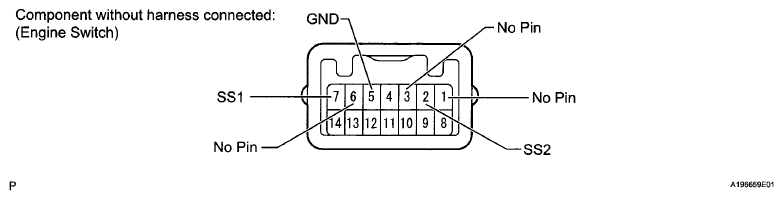

Fig 3: Identifying Terminals Of Engine Switch Connector

If the result is not as specified, replace the engine switch assembly.
