System Diagram

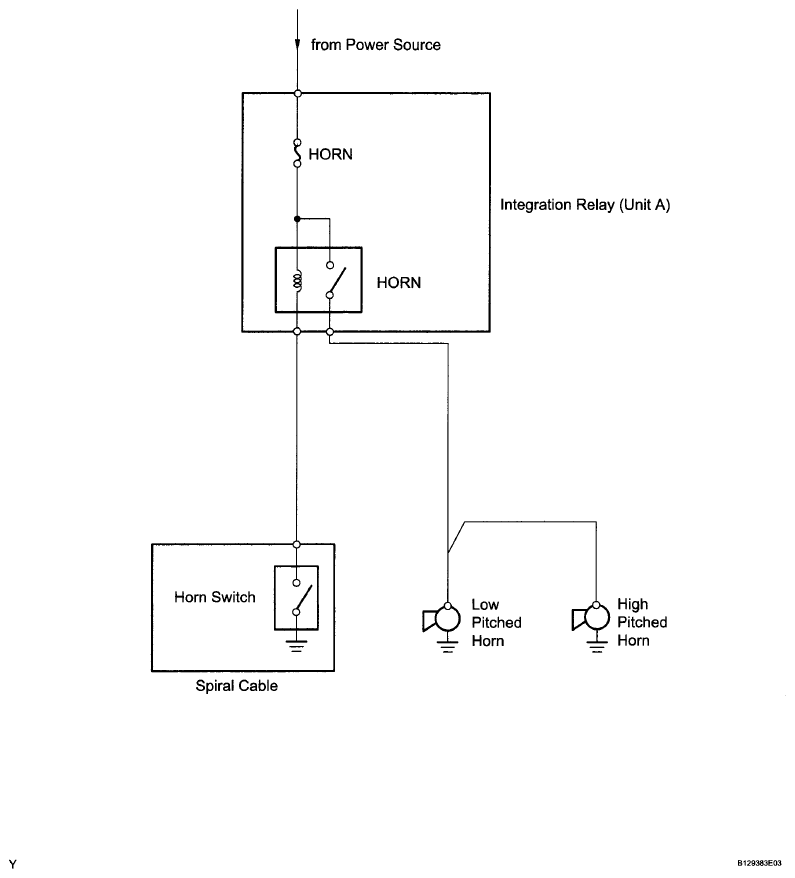

Fig 1: Horn - System Diagram

G06000511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
