Lower Instrument Panel: Components

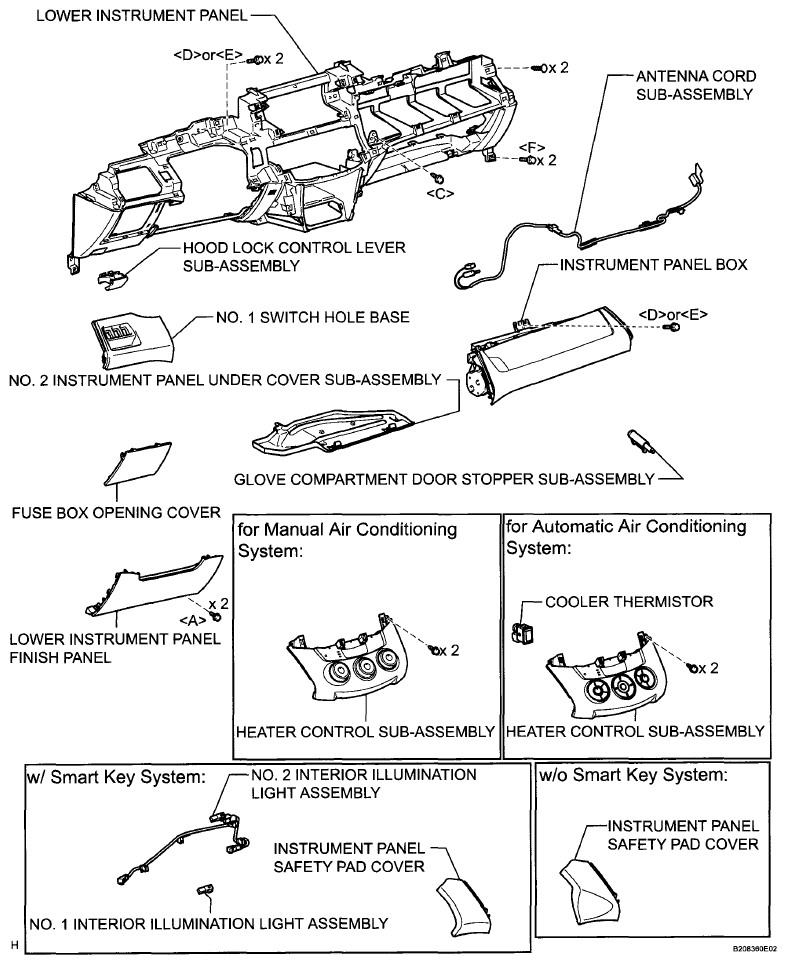

Fig 1: Identifying Lower Instrument Panel Components
G06000752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

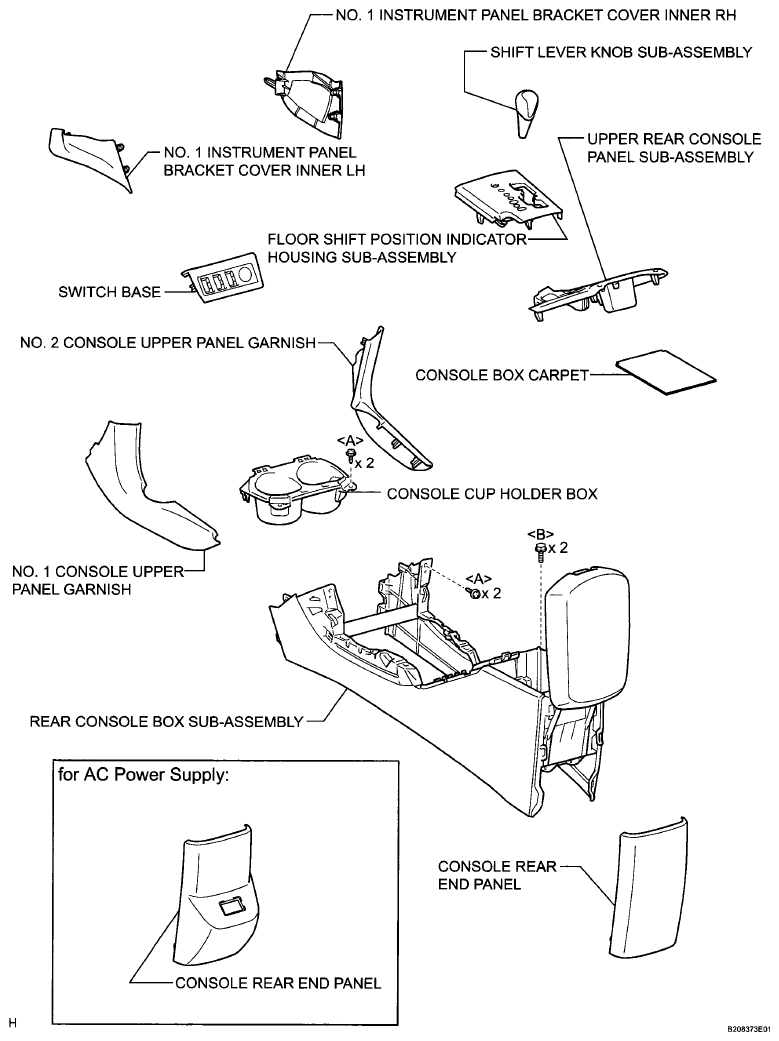

Fig 2: Identifying No.1 Instrument Panel And Console Box Components
G06000753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

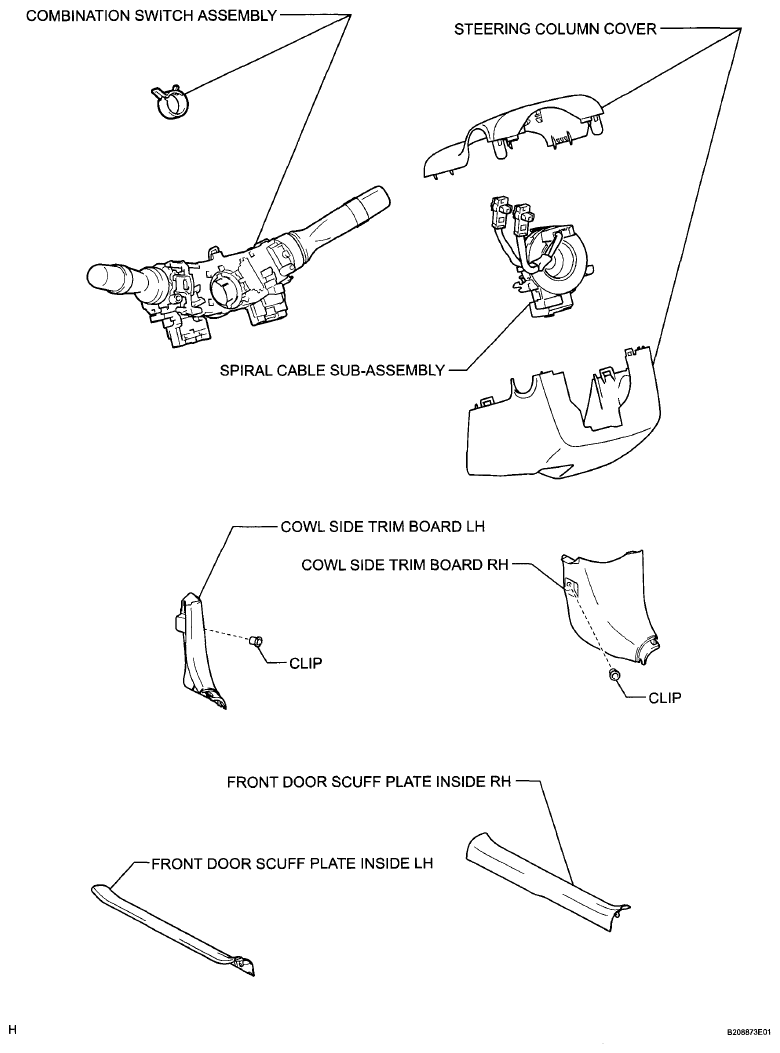

Fig 3: Identifying Combination Switch And Front Door Scuff Plate
G06000754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
