Rear Power Outlet Socket: Components

Fig 1: Rear Door Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

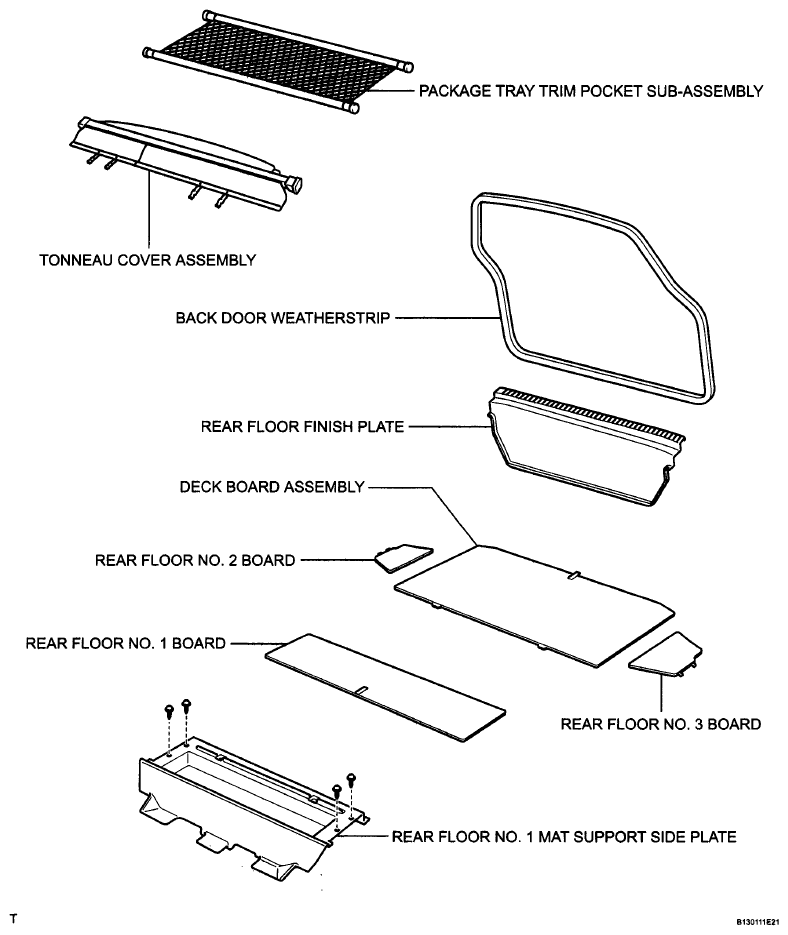

Fig 2: Identifying Rear Floor Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
