Rear Axle Hub Bolt: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY LH  (See DISASSEMBLY )
3. REMOVE REAR DISC  (See INSPECTION )
4. REMOVE REAR AXLE HUB BOLT
   1. Using SST and a brass bar or equivalent to hold the axle shaft, remove the hub bolt that needs to be replaced.

      SST 09650-17011

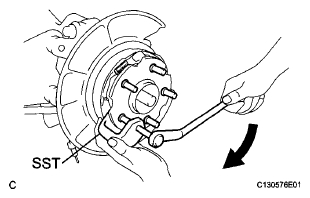

      Fig 1: Removing Rear Axle Hub Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL REAR AXLE HUB BOLT
   1. Insert a new hub bolt into the bolt hole. Set a plate washer and nut on the hub bolt end.
   2. Using a brass bar or equivalent to hold the rear axle, install the hub bolt by tightening the nut. Then remove the nut and plate washer.
6. INSTALL REAR DISC  (See REASSEMBLY )
7. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY LH  (See INSTALLATION )

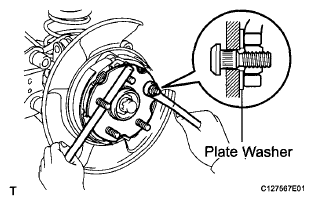

   Fig 2: Installing Rear Axle Hub Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL REAR WHEEL

   Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
