Front Seatback Heater: Inspection

1. Measure the resistance of the seatback heater.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Condition	Specified Condition
   1 - 2	Seatback heater temperature 20°C (68°F)	Approx. 6.21 Ω

   If the result is not as specified, replace the seatback heater assembly.

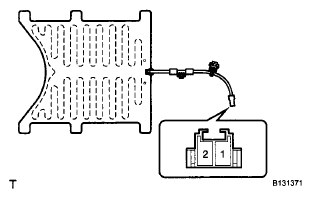

   Fig 1: Inspecting Front Seatback Heater Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.
