ID CODE BOX (w/Smart Key System): Components

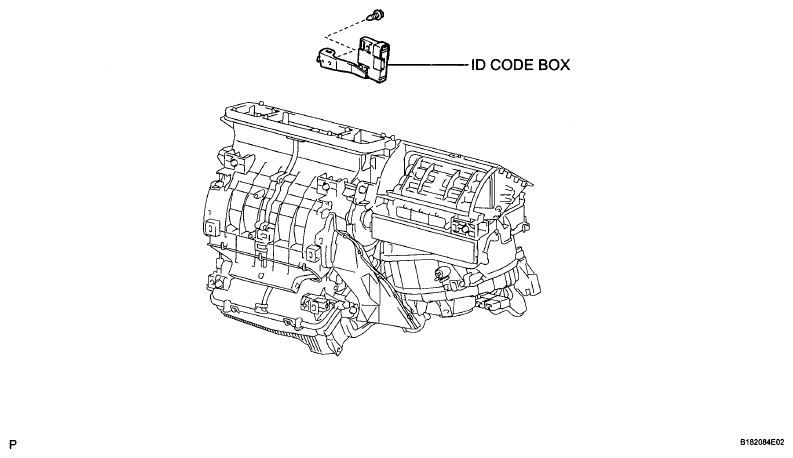

Fig 1: Identifying ID Code Box (W/Smart Key System)

G06004642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
