System Diagram

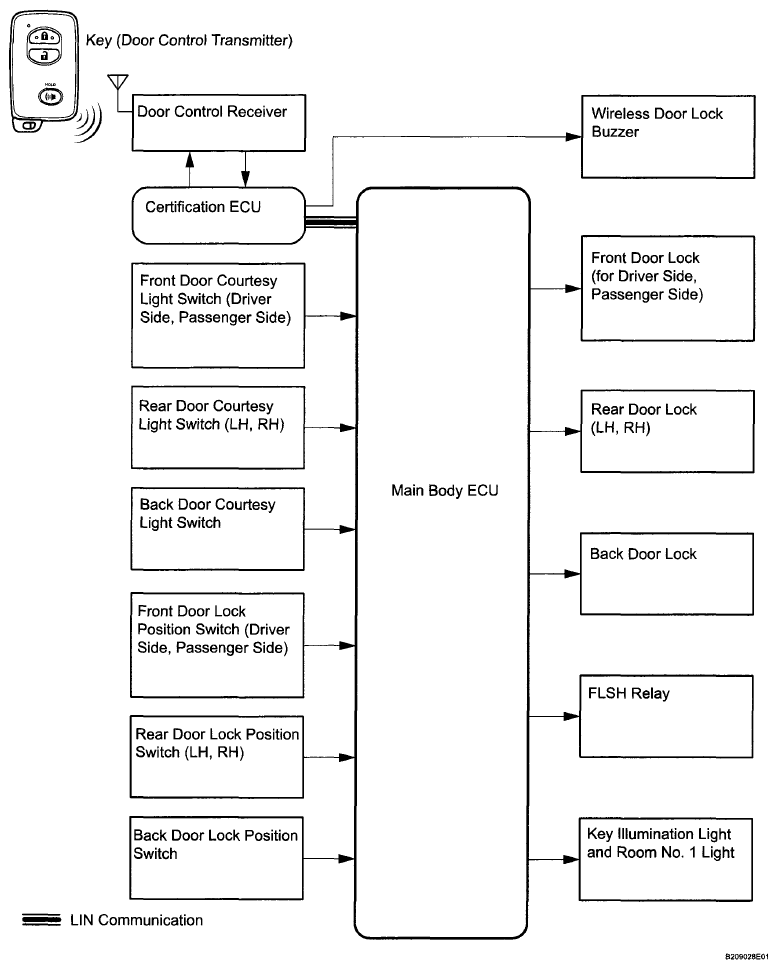

Fig 1: Wireless Door Lock Control System Diagram

G05999914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
