Only Wireless Control Function is Inoperative: Wiring Diagram

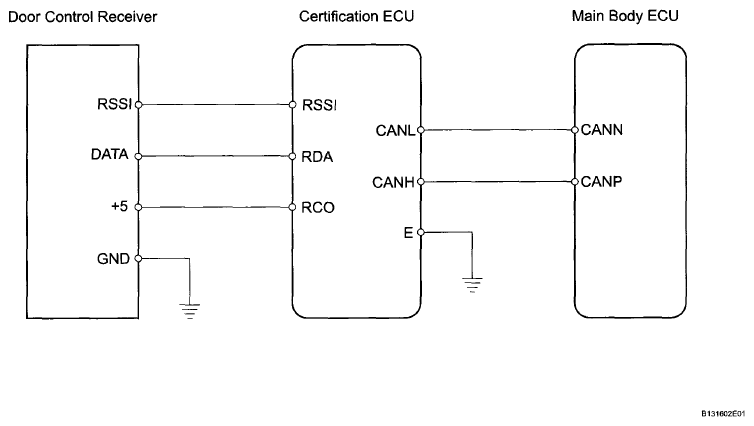

Fig 1: Only Wireless Control Function Is Inoperative - Wiring Diagram

G05999922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
