Transmitter Battery: Components

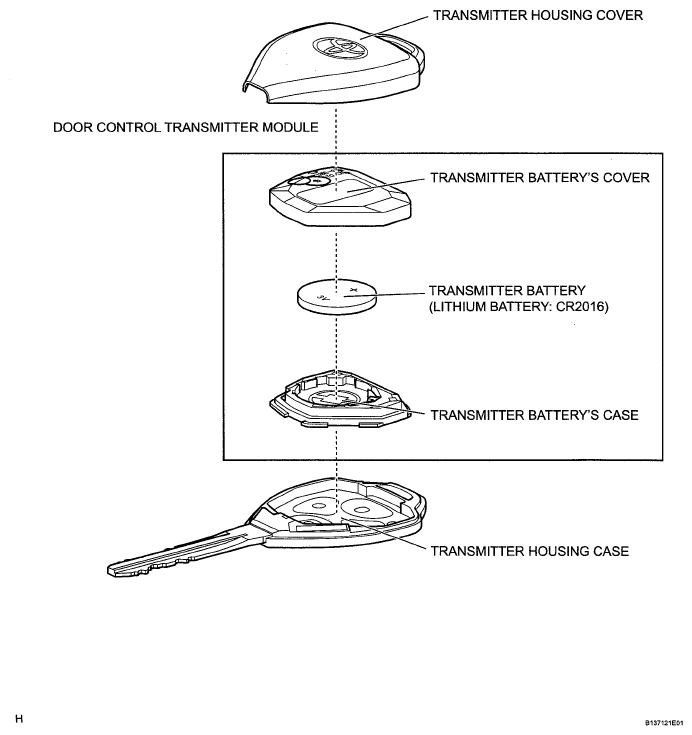

Fig 1: Identifying Transmitter Battery Components

G05586154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
