Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

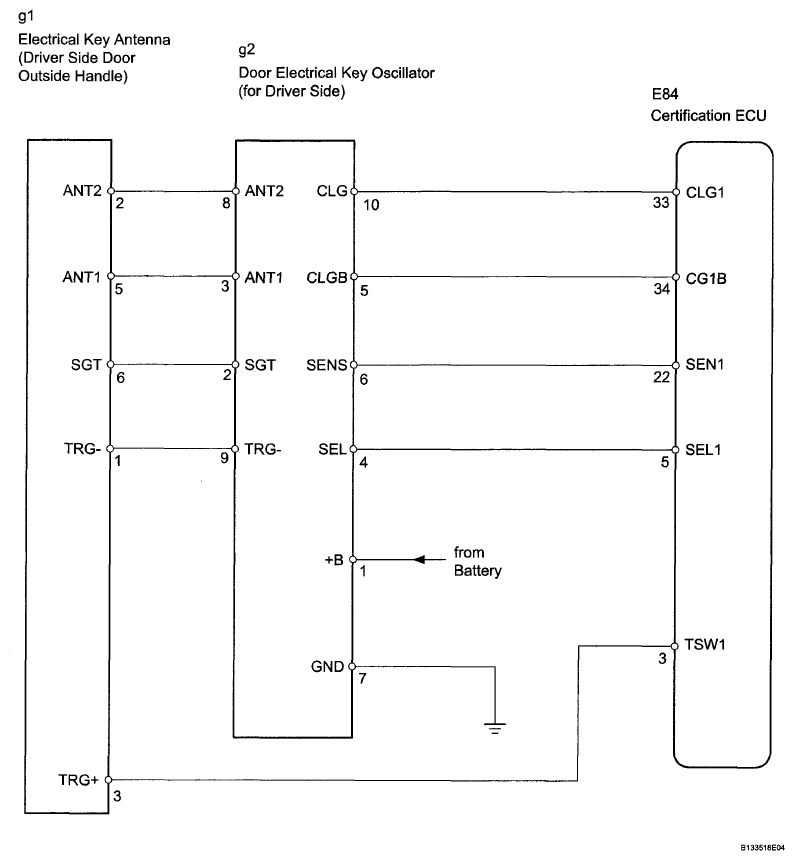

Fig 1: Driver Side Door Entry Lock And Unlock Functions Do Not Operate - Wiring Diagram
G05999981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
