Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

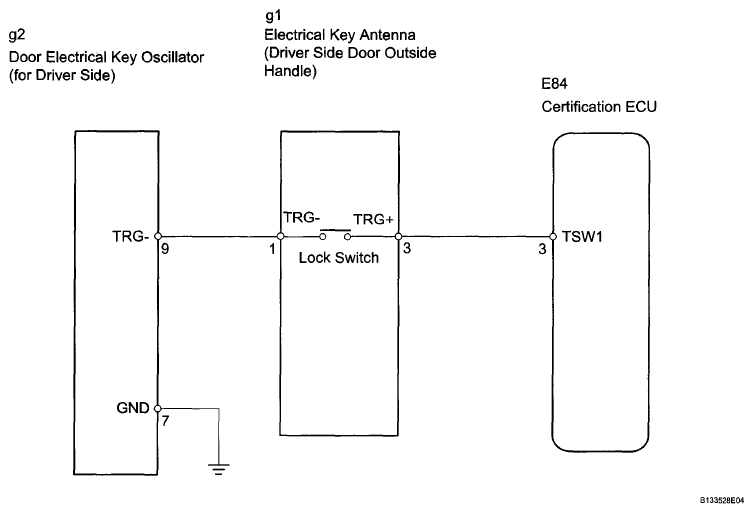

Fig 1: Driver Side Door Entry Lock Function Does Not Operate - Wiring Diagram

G05999991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
