Back Door Entry Unlock Function does not Operate: Wiring Diagram

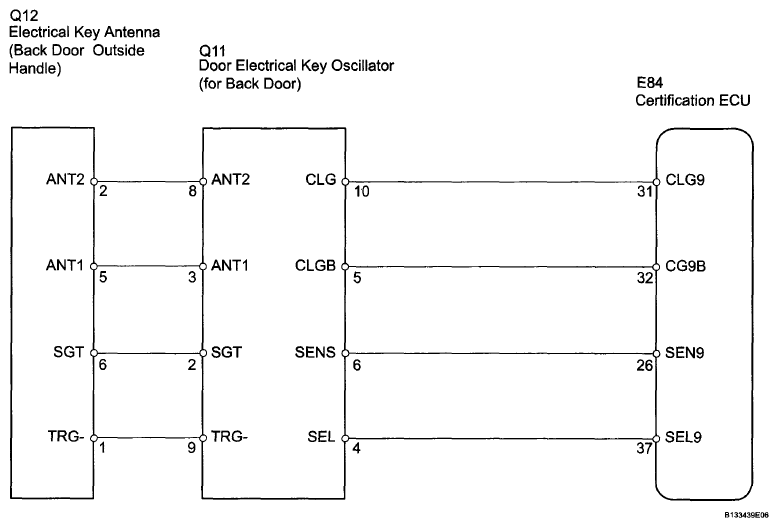

Fig 1: Back Door Entry Unlock Function Does Not Operate - Wiring Diagram

G06000000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
