Inspection Procedure

  1. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream ON.
    3. By following the Techstream screen display, check whether any DTCs are output.

    OK: No DTC output.

    Result

    RESULT CHART

    Result Proceed to
    OK A
    NG (2AR-FE) B
    NG (2GR-FE) C

    B: Go to DIAGNOSTIC TROUBLE CODE CHART  (See DIAGNOSTIC TROUBLE CODE CHART )

    C: Go to DIAGNOSTIC TROUBLE CODE CHART  (See DIAGNOSTIC TROUBLE CODE CHART )

    A: Go to next step

  2. CHECK MANUAL DOOR LOCK AND UNLOCK OPERATION
    1. Check that all the doors lock when the door control switch (for manual operation) is turned to LOCK and UNLOCK.

    OK: All doors can be locked and unlocked with door control switch.

    NG: Go to POWER DOOR LOCK CONTROL SYSTEM  (See OPERATION CHECK )

    OK: Go to next step

  3. PERFORM ACTIVE TEST USING TECHSTREAM (DOOR ELECTRICAL KEY OSCILLATOR)
    1. Select the Active Test, use the Techstream to generate a control command, and then check that the oscillator operates.

    Smart Key

    ACTIVE TEST CHART

    Tester Display Test Part Control Range Diagnostic Note
    Outside Trunk/Backdoor Transmitter Door electrical key oscillator (back door) ON or OFF -

    OK: When key is brought close to door oscillator that is ON, indicator light on key illuminates.

    NG: Go to step 4

    OK: REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU)  (See CERTIFICATION ECU (W/ SMART KEY SYSTEM) )

  4. CHECK WIRE HARNESS (CERTIFICATION ECU - DOOR ELECTRICAL KEY OSCILLATOR)
    1. Disconnect the E84 ECU connector.
    2. Disconnect the Q11 oscillator connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E84-31 (CLG9) - Q11-10 (CLG) Below 1 Ω
    E84-32 (CG9B) - Q11-5 (CLGB)
    E84-31 (CLG9) or Q11-5 (CLGB) - Body ground 10 kΩ or higher
    E84-32 (CG9B) or Q11-10 (CLG) - Body ground

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

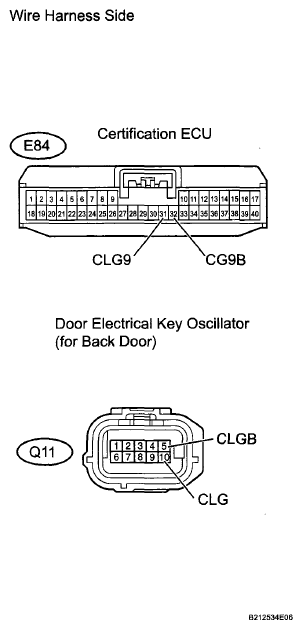

    Fig 1: Identifying Certification ECU And Door Electrical Key Oscillator Connector Terminals
    G06000005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  5. CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR - DOOR ELECTRICAL KEY ANTENNA)
    1. Disconnect the Q11 oscillator connector.
    2. Disconnect the Q12 antenna connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    Q11-2 (SGT) - Q12-6 (SGT) Below 1 Ω
    Q11-3 (ANT1) - Q12-5 (ANT1)
    Q11-8 (ANT2) - Q12-2 (ANT2)
    Q11-9 (TRG-) - Q12-1 (TRG-)
    Q11-2 (SGT) or Q12-6 (SGT) - Body ground 10 kΩ or higher
    Q11-3 (ANT1) or Q12-5 (ANT1) - Body ground
    Q11-8 (ANT2) or Q12-2 (ANT2) - Body ground
    Q11-9 (TRG-) or Q12-1 (TRG-) - Body ground

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

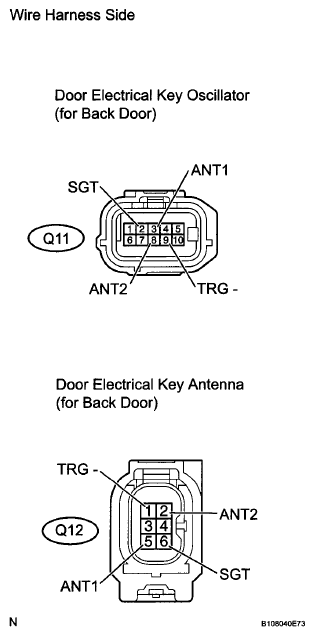

    Fig 2: Identifying Door Electrical Key Oscillator And Door Electrical Key Antenna Connector Terminals
    G06000006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  6. CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR - BATTERY AND BODY GROUND)
    1. Disconnect the Q11 oscillator connector.
    2. Measure the resistance and voltage of the wire harness side connector.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    Q11-7 (GND) - Body ground Below 1 Ω

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    Q11-1 (+B) - Body ground 11 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

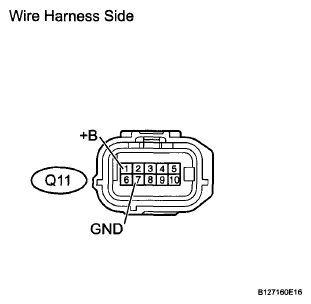

    Fig 3: Identifying Door Electrical Key Oscillator Connector Terminals
    G06000007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  7. CHECK WIRE HARNESS (DOOR ELECTRICAL KEY ANTENNA - CERTIFICATION ECU)
    1. Disconnect the Q12 antenna connector.
    2. Disconnect the E84 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    Q12-3 (TRG+) - E84-7 (TSW9) Below 1 Ω
    Q12-3 (TRG+) or E84-7 (TSW9) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

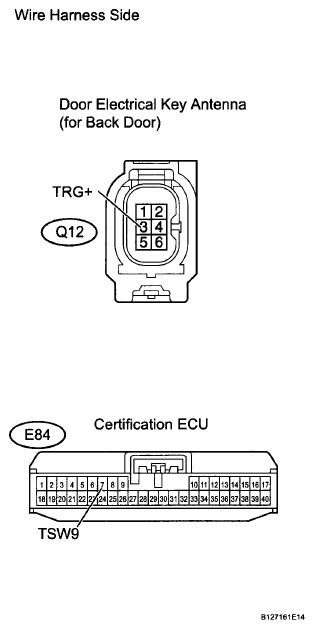

    Fig 4: Identifying Door Electrical Key Antenna And Certification ECU Connector Terminals
    G06000008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  8. CHECK BACK DOOR OUTSIDE HANDLE (OPERATION)
    1. Temporarily replace the back door outside handle with a new or normally functioning one (see REMOVAL ).
    2. Check that the entry lock and unlock functions operate normally (see OPERATION CHECK ).

    OK: Entry lock and unlock functions operate normally.

    NG: END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)

    OK: Go to next step

  9. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Temporarily replace the door electrical key oscillator (back door) with a new or normally
    2. Check that the entry lock and unlock functions operate normally.

    OK: Entry lock and unlock functions operate normally.

    NG: REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU)  (See CERTIFICATION ECU (W/ SMART KEY SYSTEM) )

    OK: END (DOOR KEY OSCILLATOR IS DEFECTIVE)
