Back Door Entry Lock Function does not Operate: Wiring Diagram

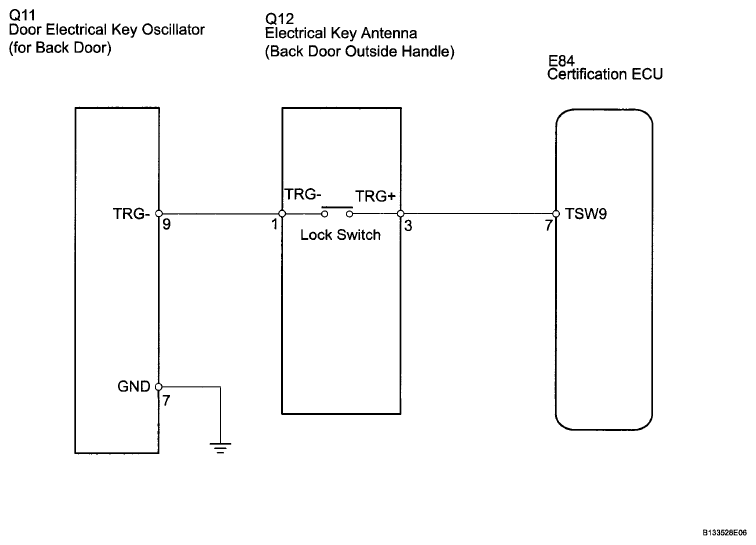

Fig 1: Back Door Entry Lock Function Does Not Operate - Wiring Diagram

G06000009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
