System Diagram

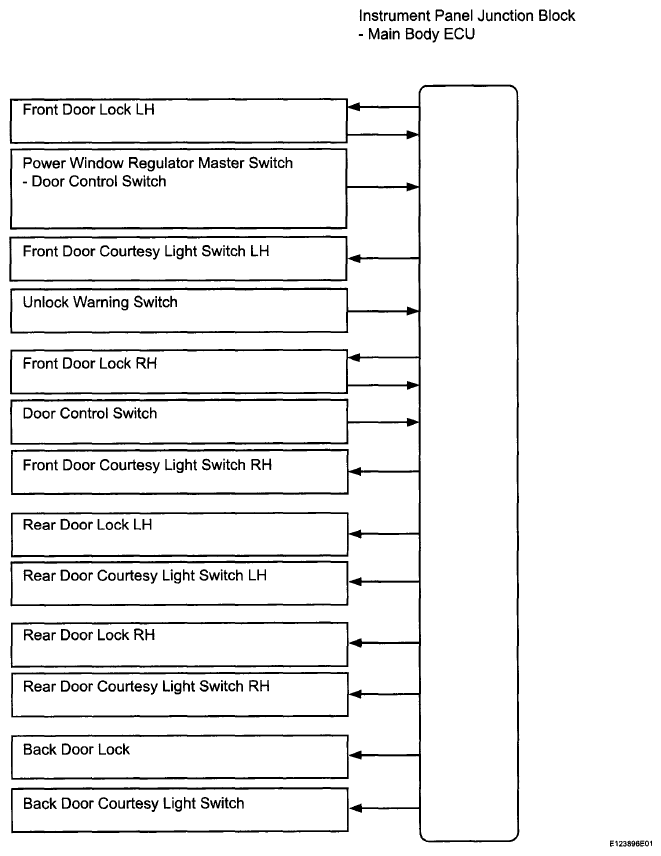

Fig 1: Power Door Lock Control System Diagram

G05999878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
