Parts Location

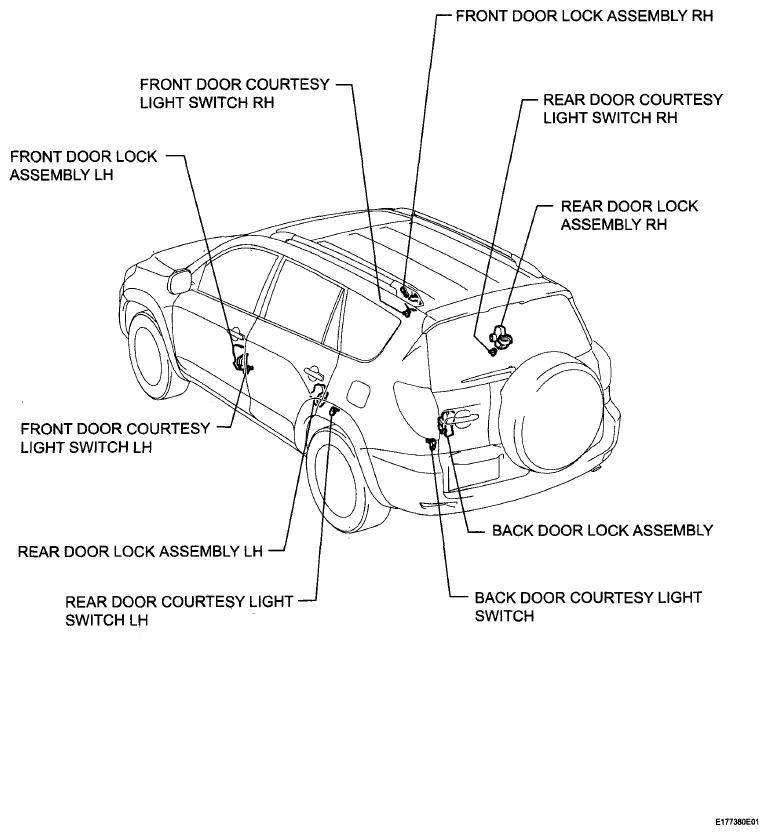

Fig 1: Identifying Power Door Lock Control System Components (1 Of 2)
G05999876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

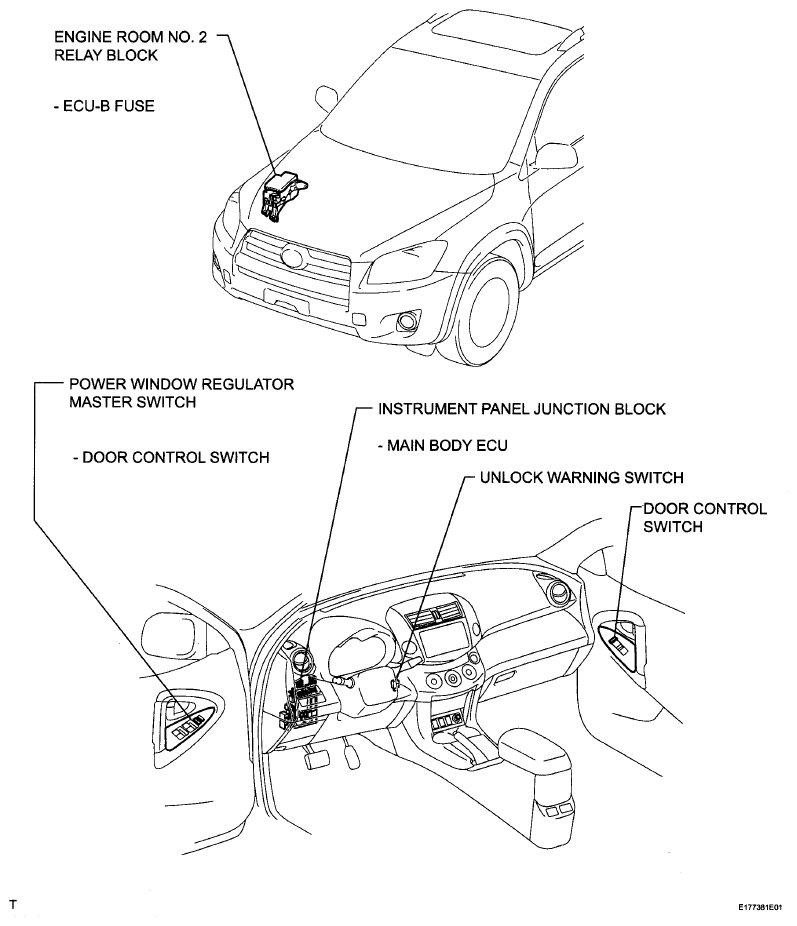

Fig 2: Identifying Power Door Lock Control System Components (2 Of 2)
G05999877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
