Door Control Receiver: Removal

  1. REMOVE REAR DOOR SCUFF PLATE RH
    1. Using a screwdriver, detach the 9 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Using a clip remover, detach the 2 clips and remove the garnish.
  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  3. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  4. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
    Fig 1: Identifying Garnish Clips And Claws
    G05586185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 SEAT HINGE COVER LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  6. REMOVE NO. 2 SEAT HINGE COVER RH (w/ Rear No. 2 Seat)

    HINT:

    Use the same procedures described for the LH side.

  7. REMOVE NO. 2 SEAT LEG COVER LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  8. REMOVE NO. 2 SEAT LEG COVER RH (w/ Rear No. 2 Seat)

    HINT:

    Use the same procedures described for the LH side.

  9. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/ Rear No. 2 Seat)  (See DISASSEMBLY )
  10. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/ Rear No. 2 Seat)
  11. REMOVE REAR FLOOR NO. 3 BOARD
  12. REMOVE REAR FLOOR NO. 2 BOARD
  13. REMOVE REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE  (See REMOVAL )
  14. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
  15. REMOVE REAR DECK TRIM COVER RH (w/ Rear No. 2 Seat)
    1. Remove the bolt.
    2. Using a screwdriver, detach the 4 claws and remove the trim cover.

    HINT:

    Tape the screwdriver tip before use.

  16. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat)  (See REMOVAL )
  17. REMOVE TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)
    1. Remove the bolt and tether anchor bracket.
  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat)  (See REMOVAL )
  19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/ Rear No. 2 Seat)  (See REMOVAL )
    Fig 2: Identifying Tether Anchor Bracket Bolt
    G05586186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)
    1. Using a clip remover, detach the 7 clips and remove the garnish.
    Fig 3: Identifying Garnish Clips
    G05586187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH (w/ Rear No. 2 Seat)
    1. Disconnect the rear No. 2 seat outer belt's shoulder anchor.
      1. Using a screwdriver, detach the 2 claws and open the seat belt anchor cover.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the bolt and disconnect the shoulder anchor.

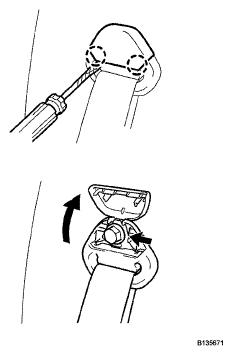

      Fig 4: Disconnecting Shoulder Anchor
      G05586188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, detach the 7 clips and remove the garnish.
    Fig 5: Identifying Garnish Clips
    G05586189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE DOOR CONTROL RECEIVER
    1. Disconnect the receiver connector.
    2. Remove the bolt and receiver.
    Fig 6: Identifying Door Control Receiver Bolt
    G05586190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
