Navigation Receiver: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER (See DISASSEMBLY )
REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER (See DISASSEMBLY )
REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
1. Remove the 4 bolts.
2. Pull the navigation receiver to detach the 2 claws and 4 clips on the backside of the navigation receiver.

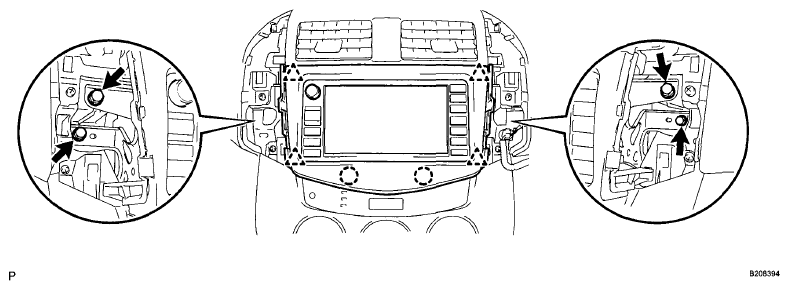

  Fig 1: Locating Navigation Receiver Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect all the connectors and remove the navigation receiver.
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Detach the 4 claws and remove the instrument cluster finish panel.

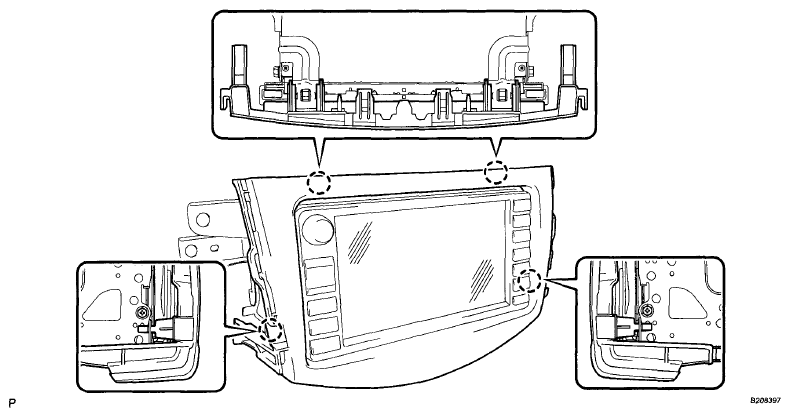

  Fig 2: Identifying Instrument Cluster Finish Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 RADIO BRACKET
1. Remove the 4 screws and radio receiver bracket.

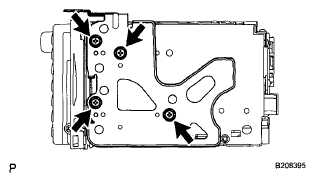

  Fig 3: Locating Radio Receiver Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO BRACKET
1. Remove the 4 screws and radio receiver bracket.

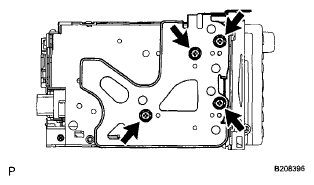

  Fig 4: Locating Radio Receiver Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
