Stereo Jack Adapter Assembly: Components

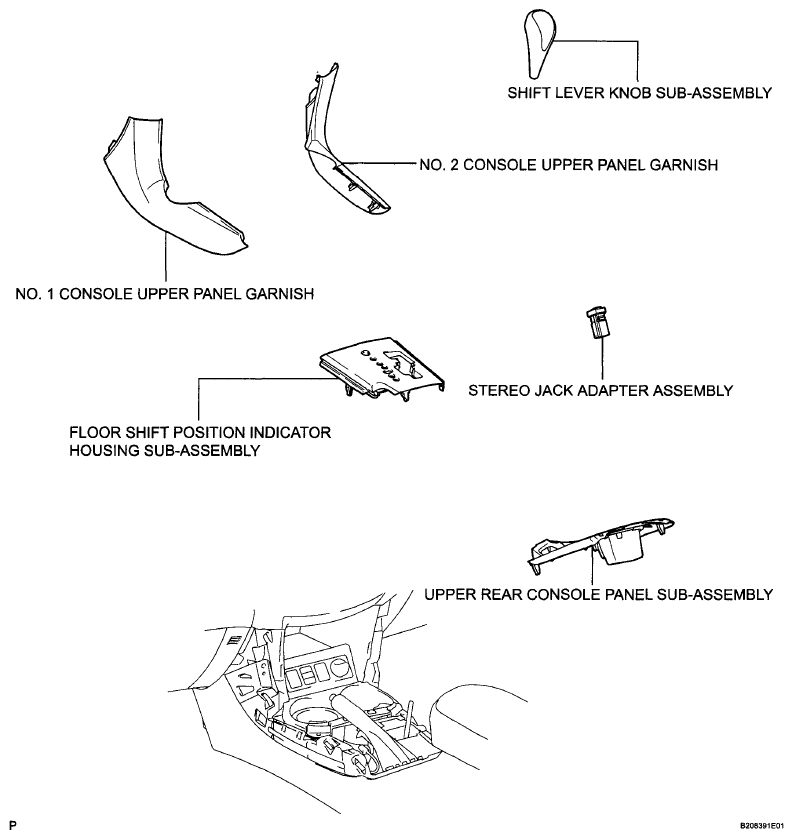

Fig 1: Identifying Stereo Jack Adapter Assembly Components

G06000300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
