Home >> Toyota >> 2009 >> RAV4 Base, 2.5 F, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Steering Pad Switch >> Components

Steering Pad Switch: Components

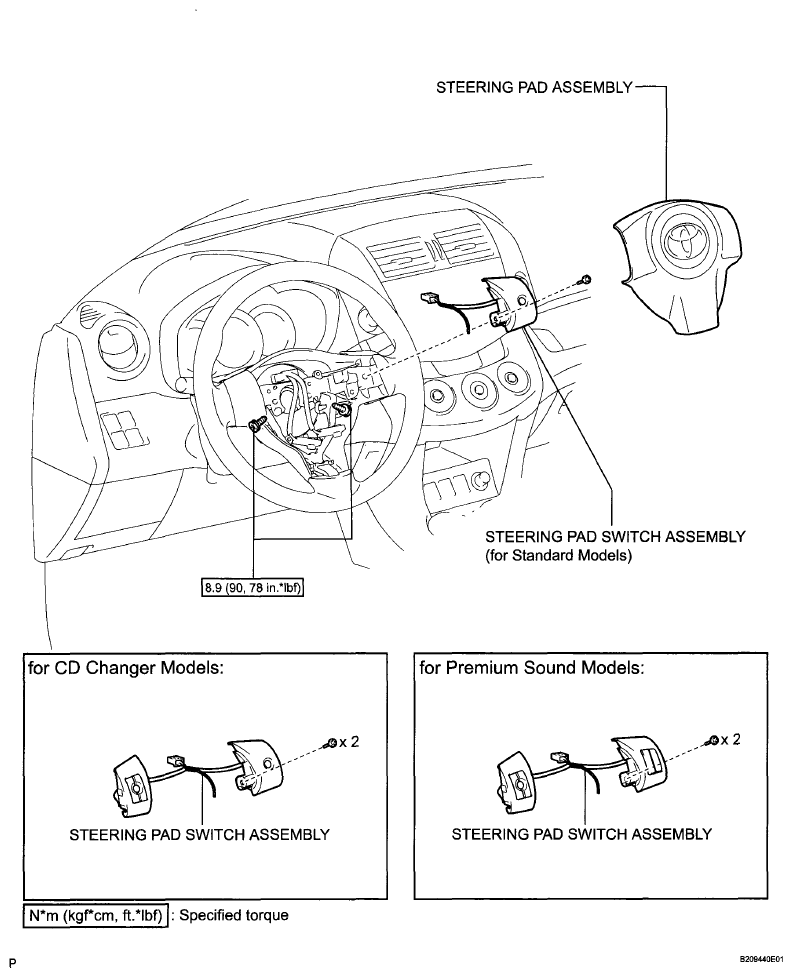

Fig 1: Identifying Steering Pad Switch Components

G06000303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
