Cruise Control System
>>
Parts Location
Parts Location

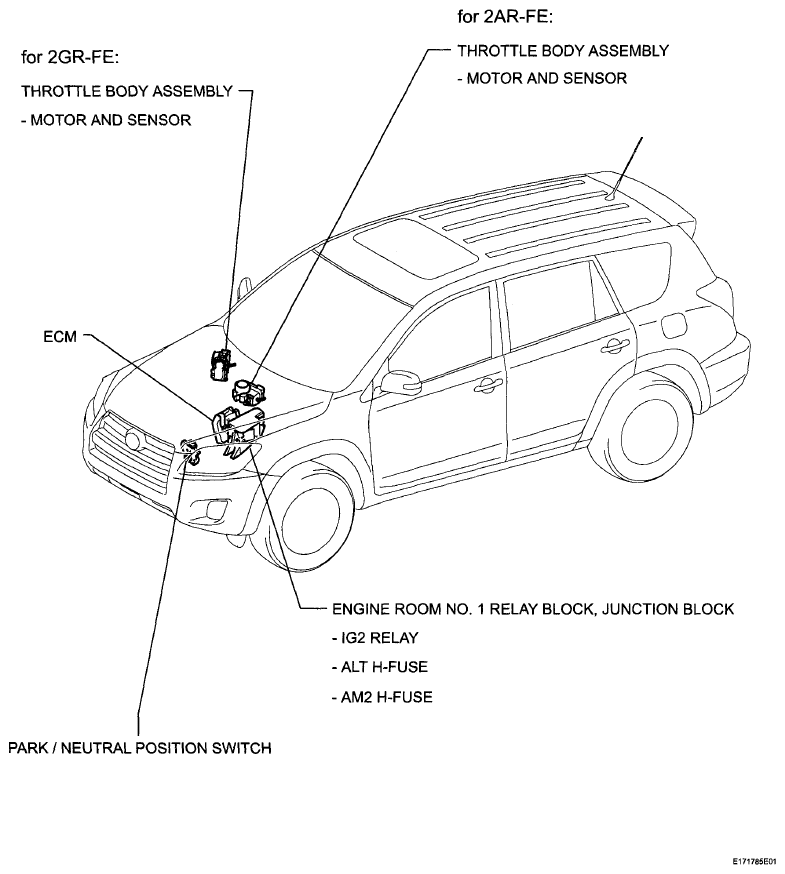

Fig 1: Identifying Cruise Control System Part Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

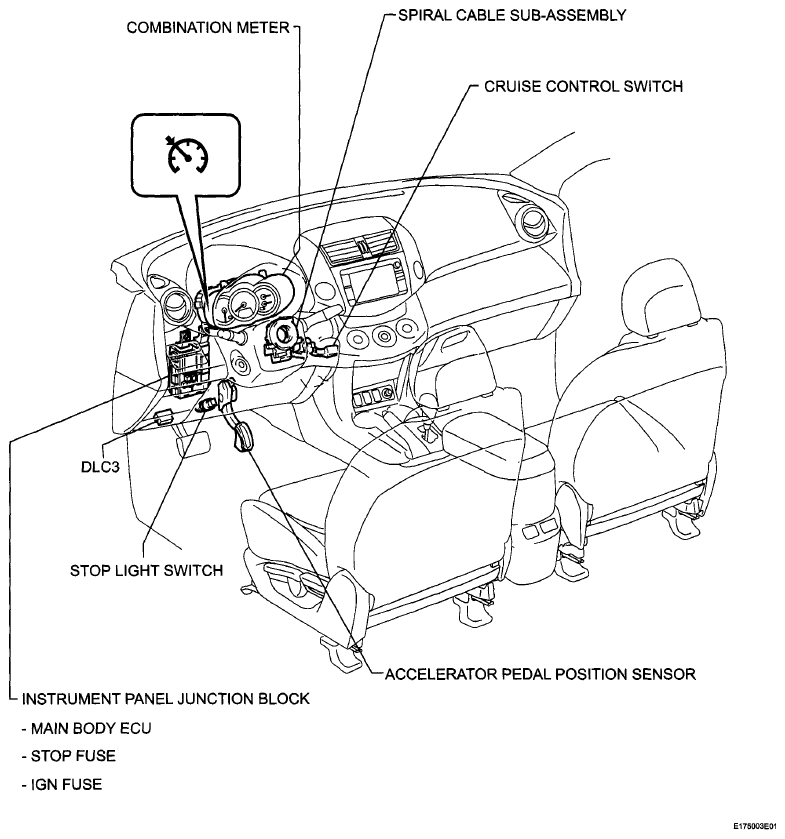

Fig 2: Identifying Cruise Control System Part Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
