System Diagram
System Diagram

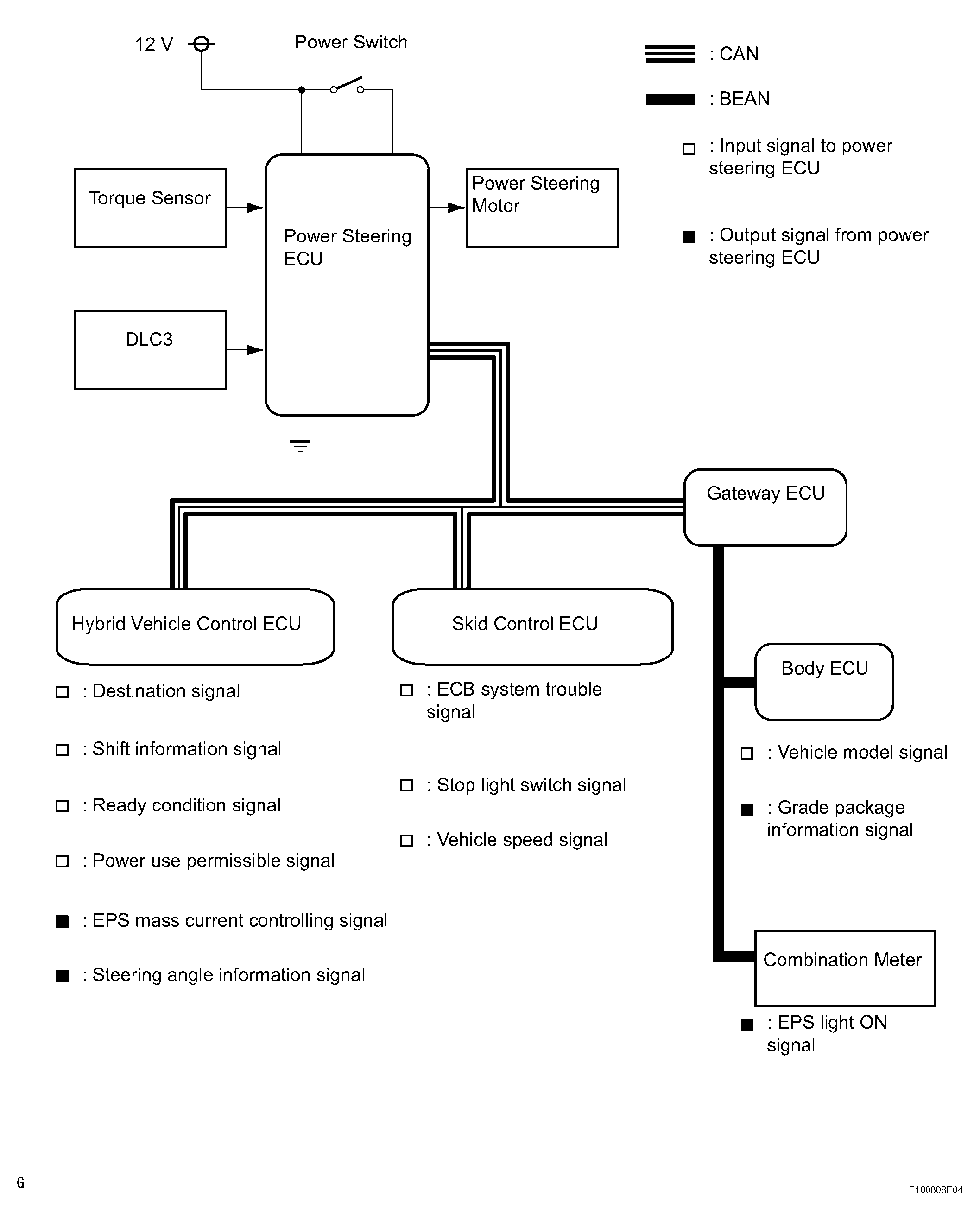

Fig 1: Electronic Power Steering System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
