HV Battery: Components

Fig 1: Replacement Components Related To HV Battery Servicing With Torque Specification (1 Of 9)
G04473872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Replacement Components Related To HV Battery Servicing With Torque Specification (2 Of 9)
G04473873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Replacement Components Related To HV Battery Servicing With Torque Specification (3 Of 9)
G04473874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Replacement Components Related To HV Battery Servicing With Torque Specification (4 Of 9)
G04473875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Replacement Components Related To HV Battery Servicing With Torque Specification (5 Of 9)
G04473876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Replacement Components Related To HV Battery Servicing With Torque Specification (6 Of 9)
G04473877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Replacement Components Related To HV Battery Servicing With Torque Specification (7 Of 9)
G04473878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

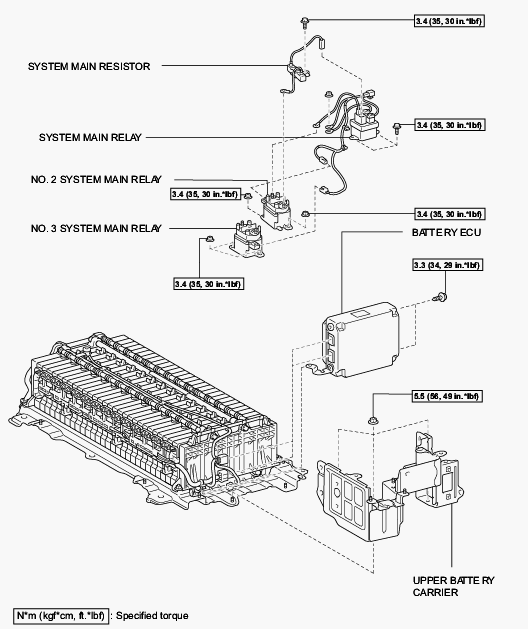

Fig 8: Replacement Components Related To HV Battery Servicing With Torque Specification (8 Of 9)
G00468250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Replacement Components Related To HV Battery Servicing With Torque Specification (9 Of 9)
G04473880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
