Oil Pump: Components

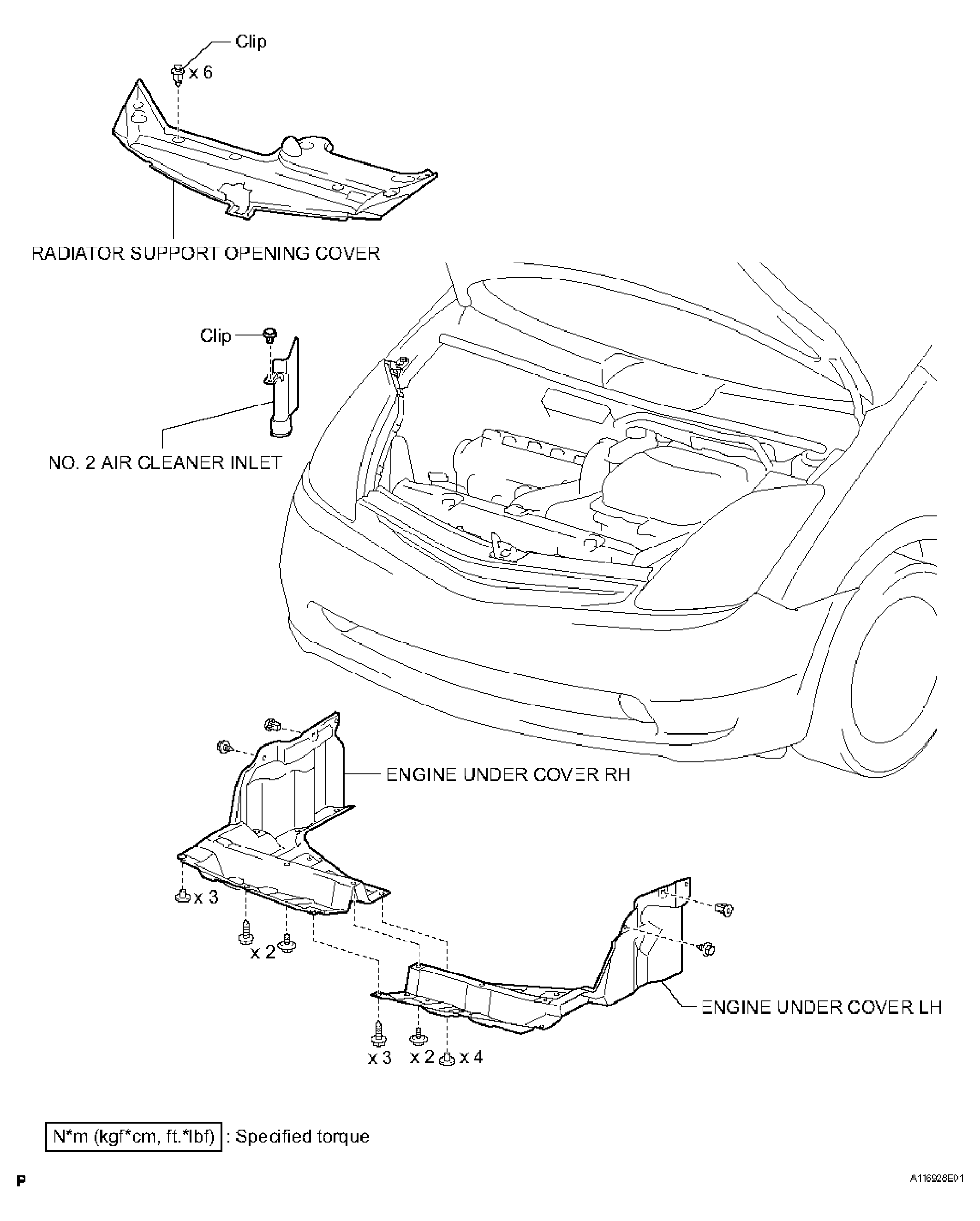

Fig 1: Oil Pump Replacement Components -- With Torque Specifications (1 Of 6)
G04473111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

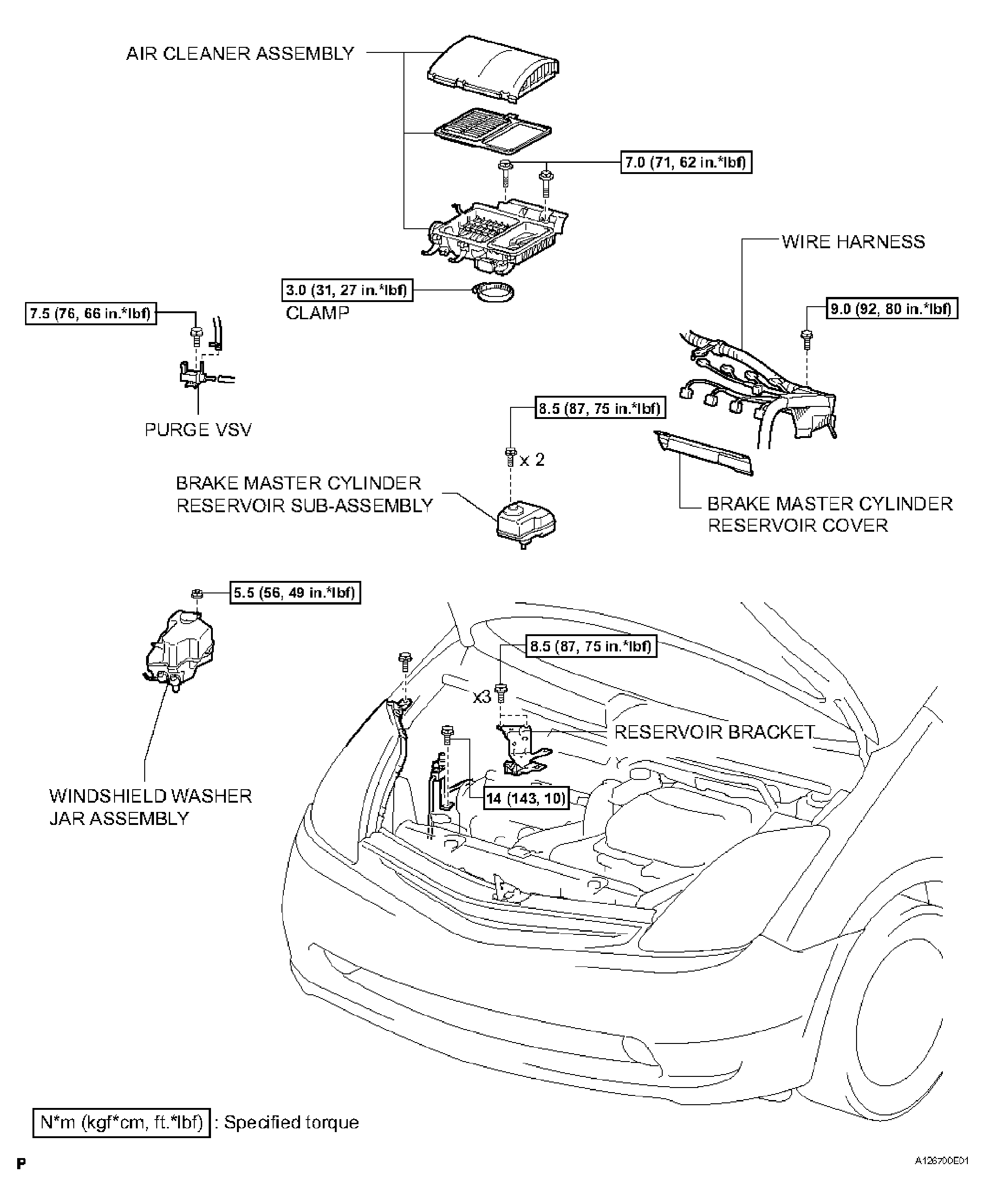

Fig 2: Oil Pump Replacement Components -- With Torque Specifications (2 Of 6)
G04473112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Oil Pump Replacement Components -- With Torque Specifications (3 Of 6)
G04473113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

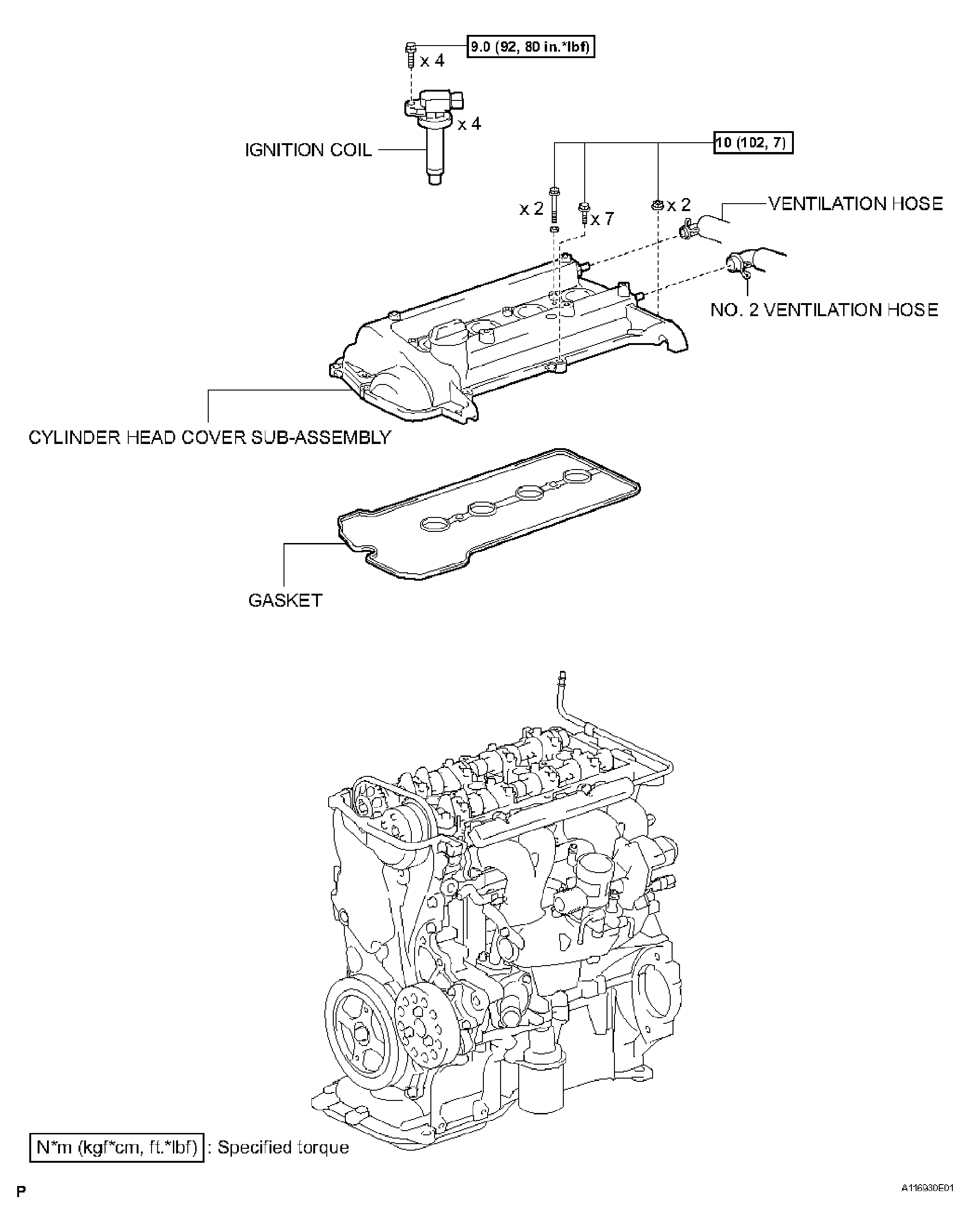

Fig 4: Oil Pump Replacement Components -- With Torque Specifications (4 Of 6)
G04473114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

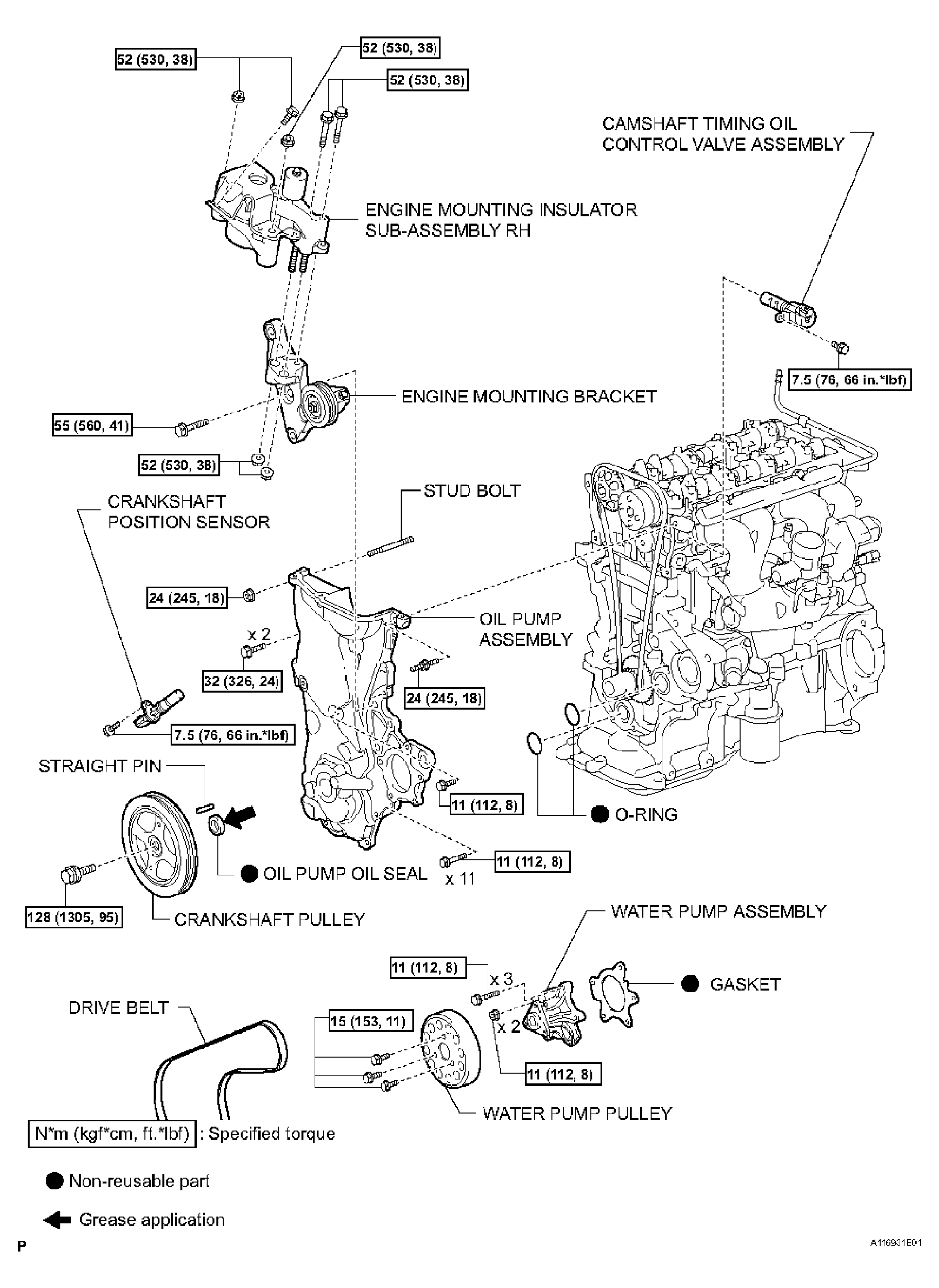

Fig 5: Oil Pump Replacement Components -- With Torque Specifications (5 Of 6)
G04473115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

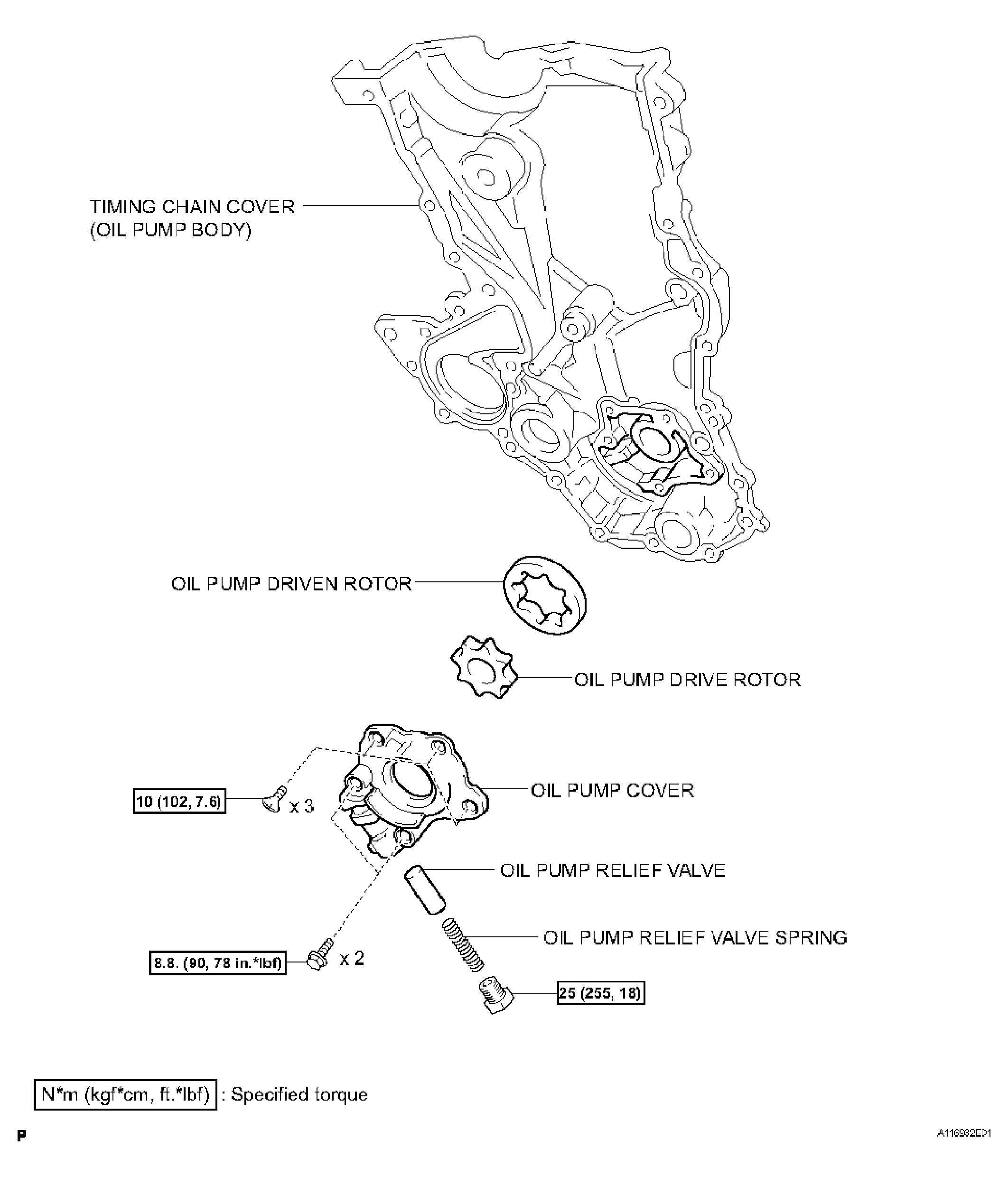

Fig 6: Oil Pump Replacement Components -- With Torque Specifications (6 Of 6)
G04473116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
