Engine Exhaust Assembly (1NZ-FXE): Components

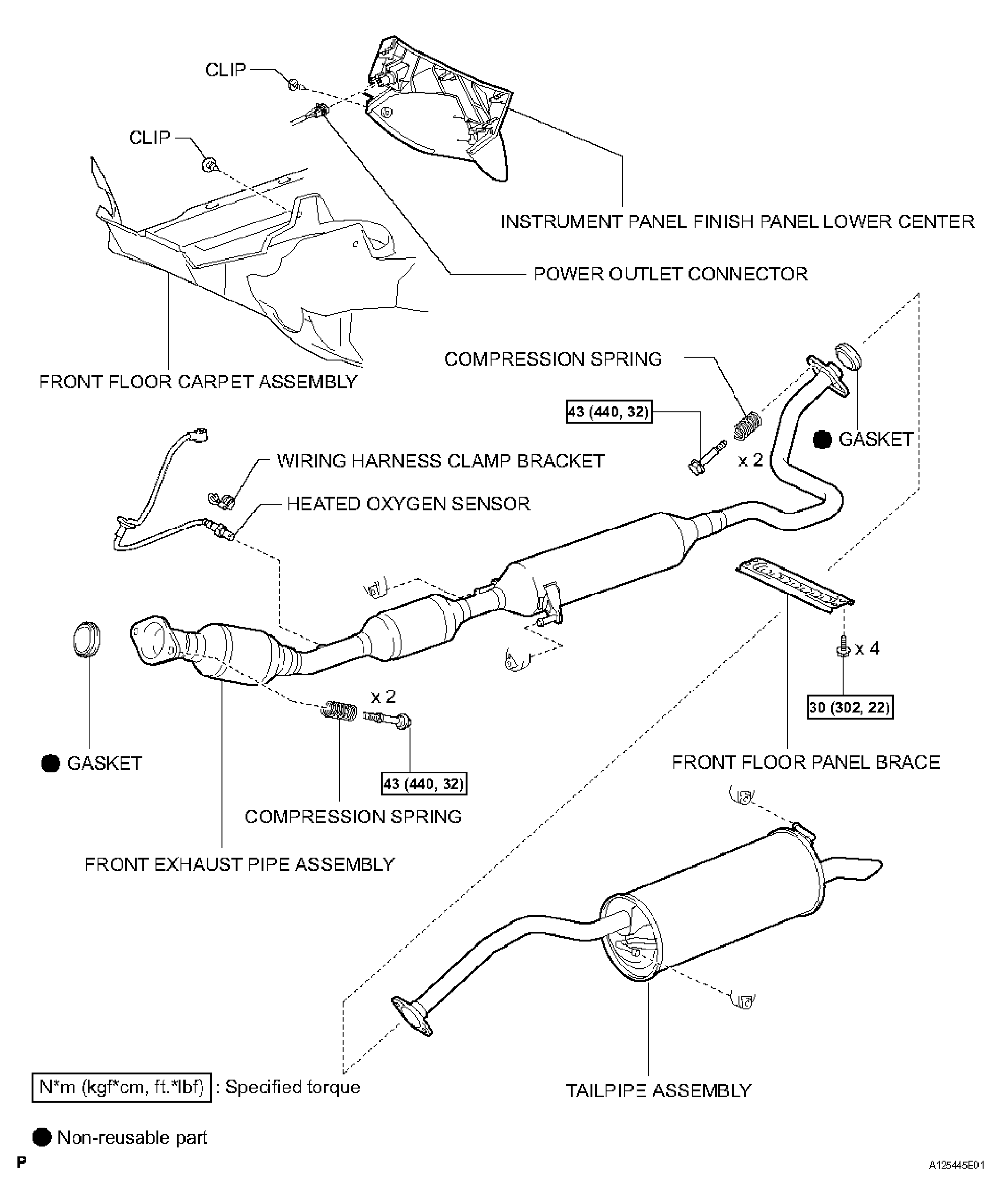

Fig 1: Exhaust Replacement Components -- With Torque Specifications

G04473009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
