Parts Location

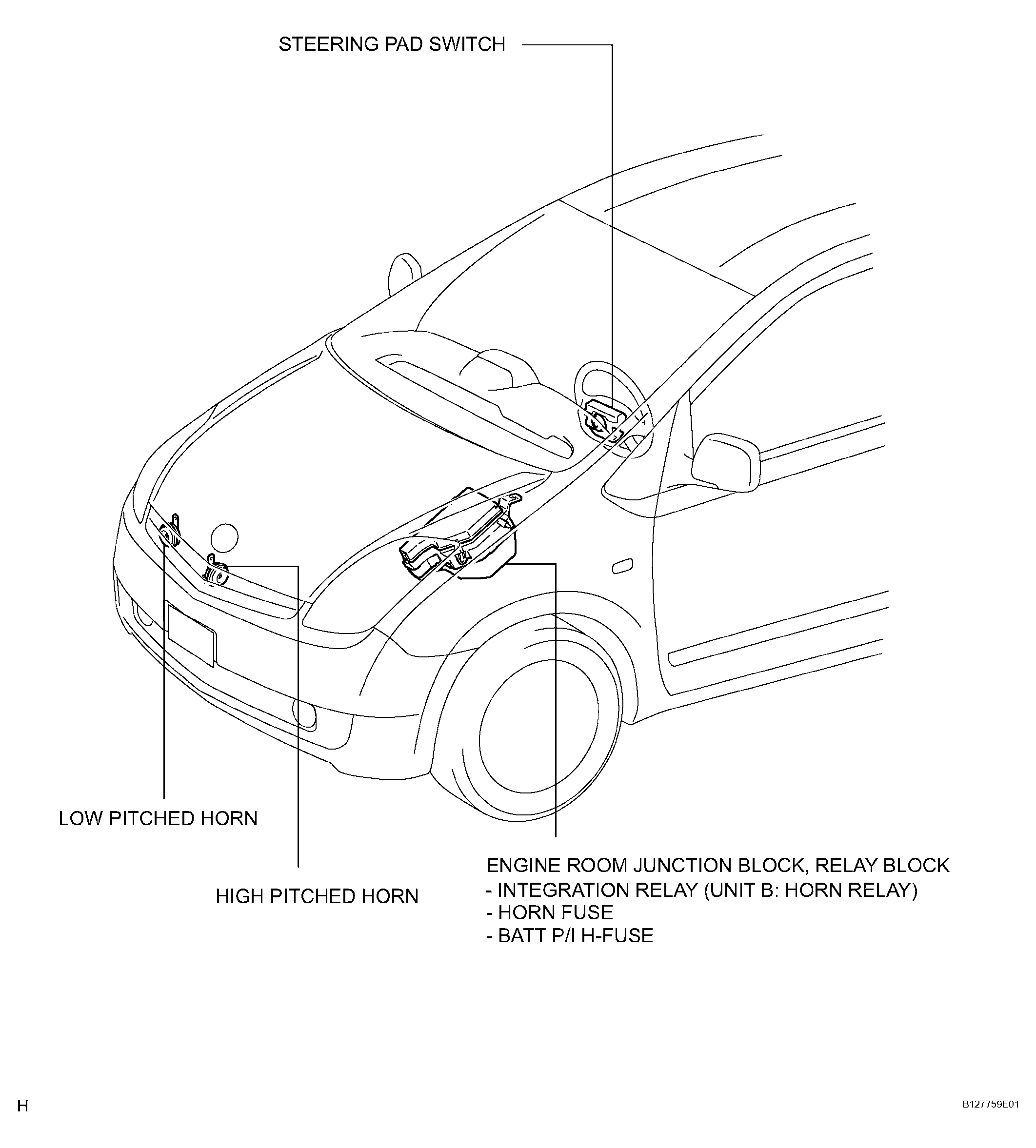

Fig 1: Locating Horn System Components
G04476697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
