High Pitched Horn: Inspection

  1. INSPECT HIGH PITCHED HORN
    1. Apply battery voltage to the horn and check the operation of the horn.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 1 Horn sounds
      Battery negative (-) --> Horn bracket

      If the result is not as specified, replace the horn.

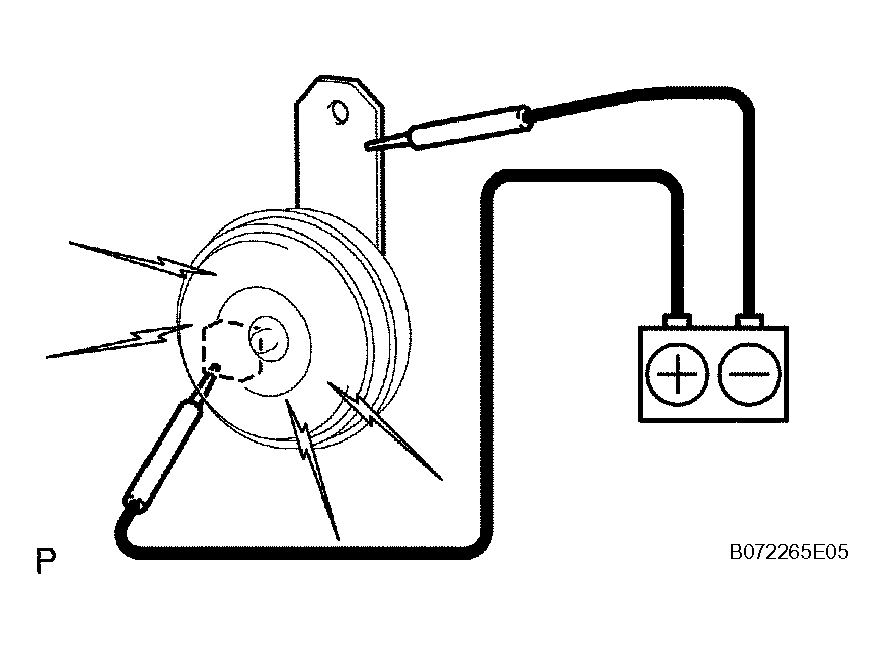

      Fig 1: Checking High Pitched Horn Operation
      G04476706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
