Rear Wiper and Washer: Notes

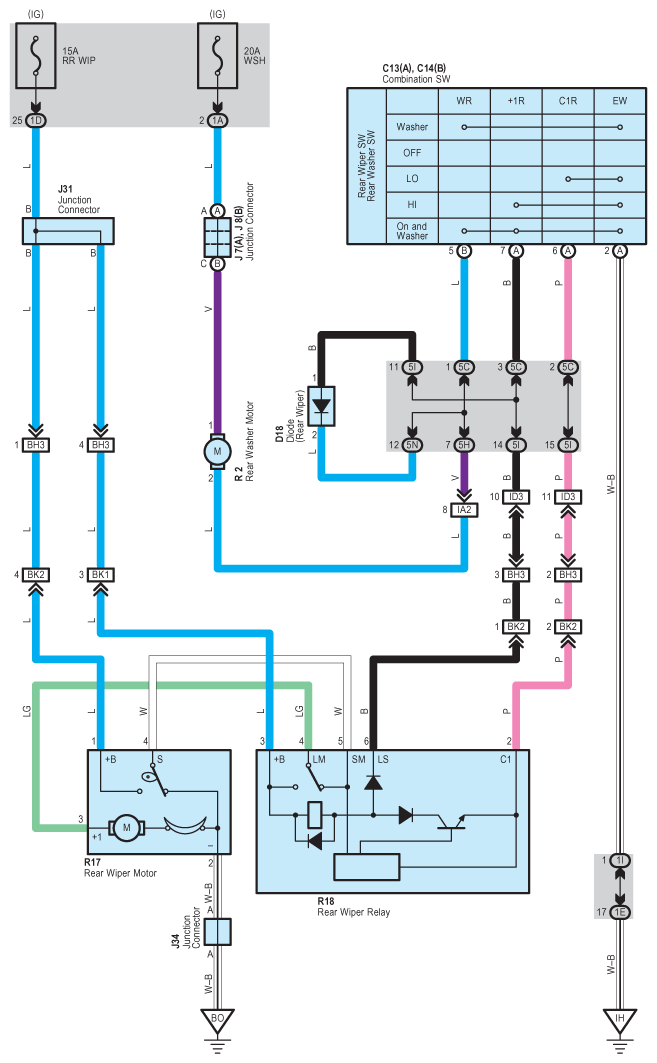

Fig 1: Rear Wiper And Washer - Circuit Diagram
G07610998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
