Parking Brake Cable: Components

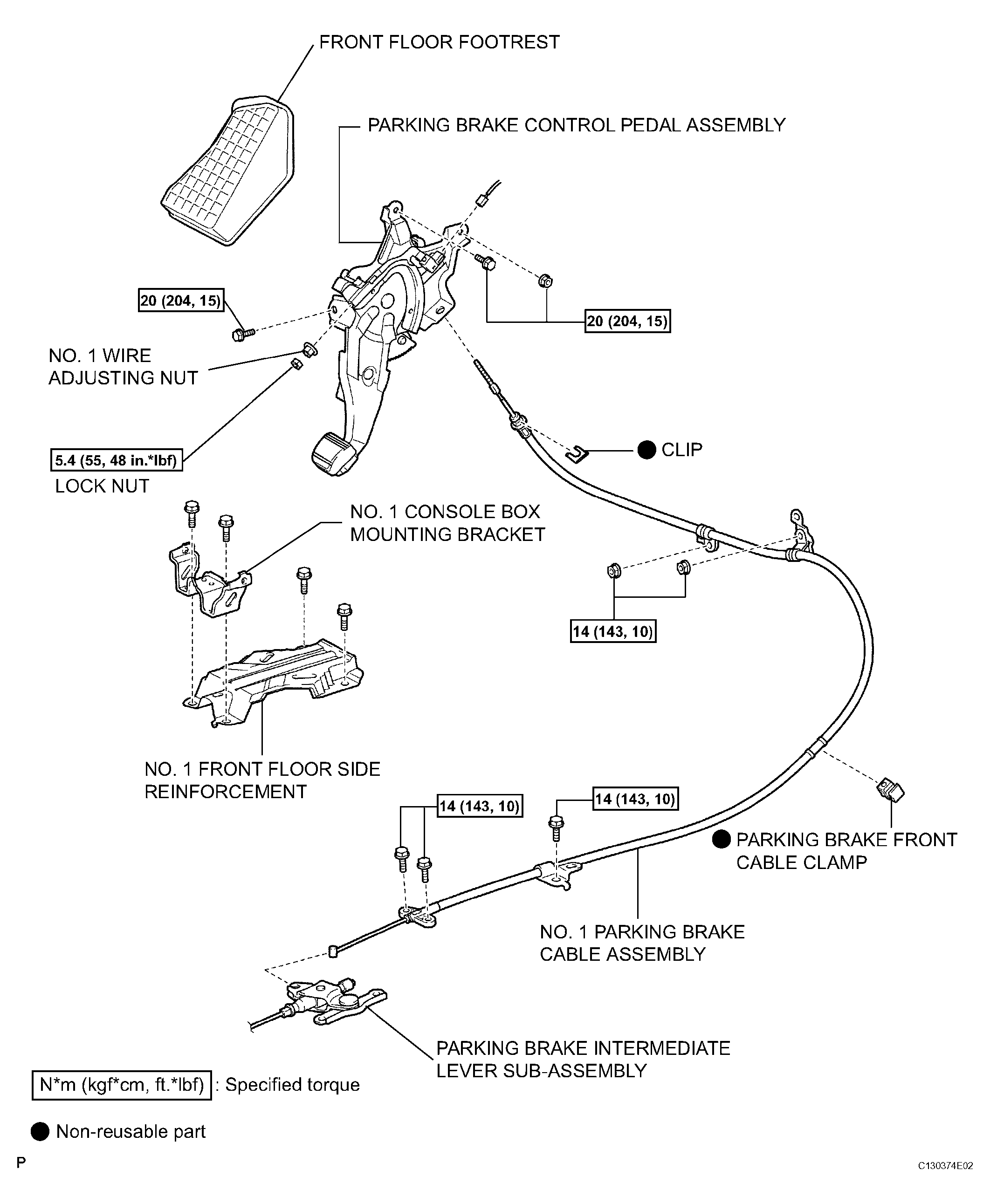

Fig 1: Parking Brake Cable Replacement Components -- With Torque Specification (1 Of 2)
G04474901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

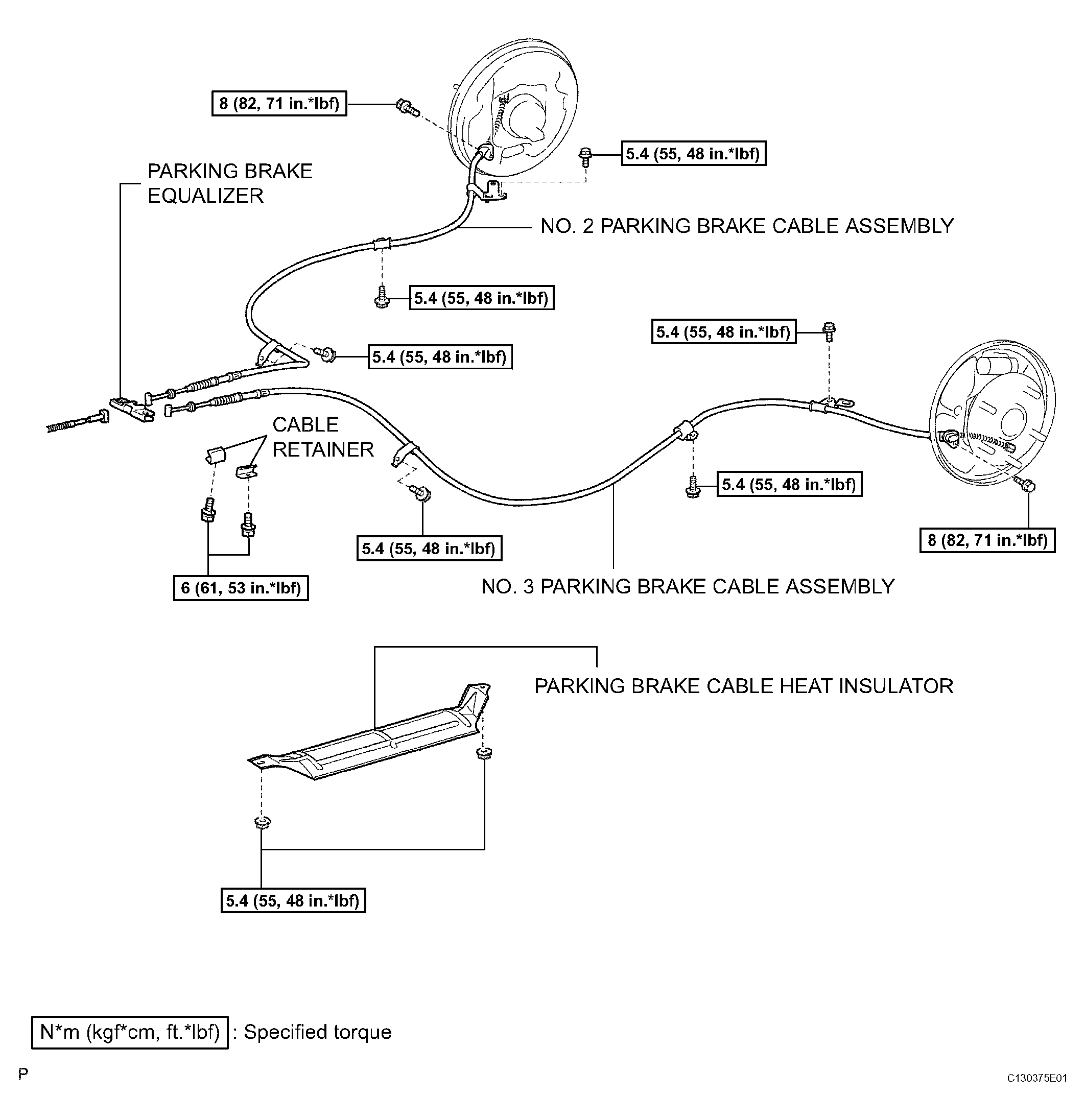

Fig 2: Parking Brake Cable Replacement Components -- With Torque Specification (2 Of 2)
G04474902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
