Rear Seat Assembly: Installation

INSTALL REAR SEATBACK CENTER HINGE SUBASSEMBLY
1. Install the hinge with the 2 bolts.
  Torque: 18.1 N*m (185 kgf*cm, 13 ft.*lbf)
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY LH
1. Install the hinge with the bolt.

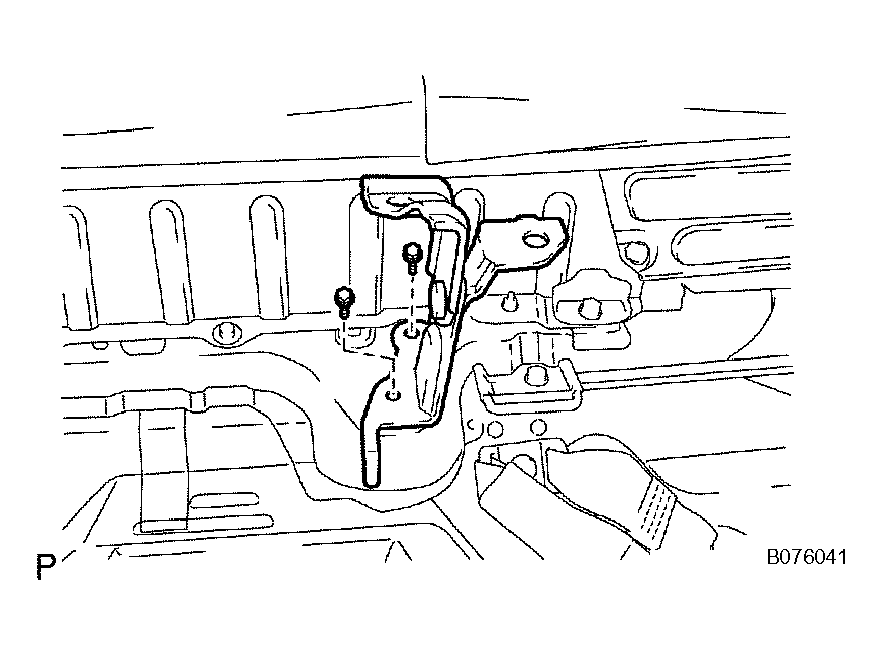

  Fig 1: Installing Rear Seatback Hinge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18.1 N*m (185 kgf*cm, 13 ft.*lbf)
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY RH
1. Install the hinge with the bolt.
  Torque: 18.1 N*m (185 kgf*cm, 13 ft.*lbf)
INSTALL REAR SIDE SEATBACK ASSEMBLY LH
1. Install the side seatback with the bolt.
INSTALL REAR SIDE SEATBACK ASSEMBLY RH
1. Install the side seatback with the bolt.
INSTALL REAR DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL REAR DOOR SCUFF PLATE RH (See INSTALLATION )
INSTALL REAR SEATBACK ASSEMBLY LH
1. Install the seatback with the 2 bolts.

  Fig 2: Installing Rear Seatback Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 36.8 N*m (375 kgf*cm, 27 ft.*lbf)
2. Close the front part of the rear No. 1 floor deck board.
3. Return the seatback to the upright position.
INSTALL REAR SEATBACK ASSEMBLY RH
1. Install the seatback with the 2 bolts.
  Torque: 36.8 N*m (375 kgf*cm, 27 ft.*lbf)
2. Close the front part of the rear No. 1 floor deck board.
3. Return the seatback to the upright position.
4. Connect the rear seat outer belt floor anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 3: Installing Rear Seatback Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION ASSEMBLY
NOTE: When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.
1. Attach the seat cushion's rear hook to the center hinge.
2. Insert the inner belts through the slits on the seat cushion.

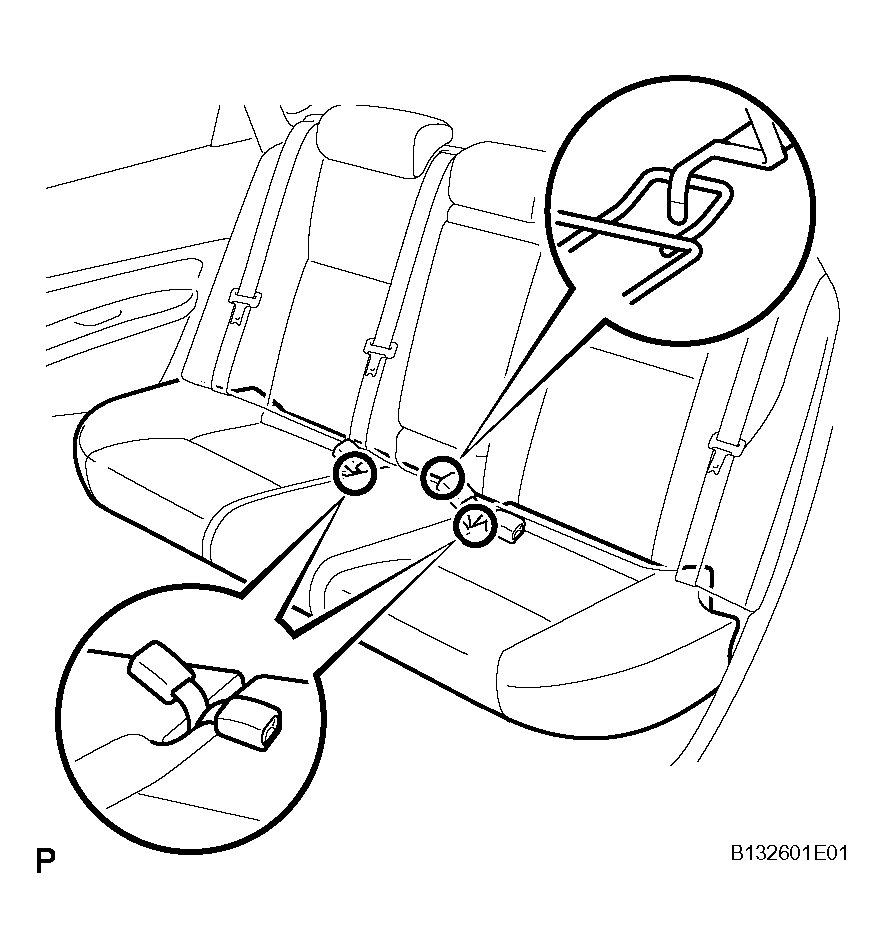

  Fig 4: Attaching Seat Cushion's Rear Hook To Center Hinge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the seat cushion's 2 front hooks to the vehicle body.
4. Confirm that the seat cushion is firmly installed.

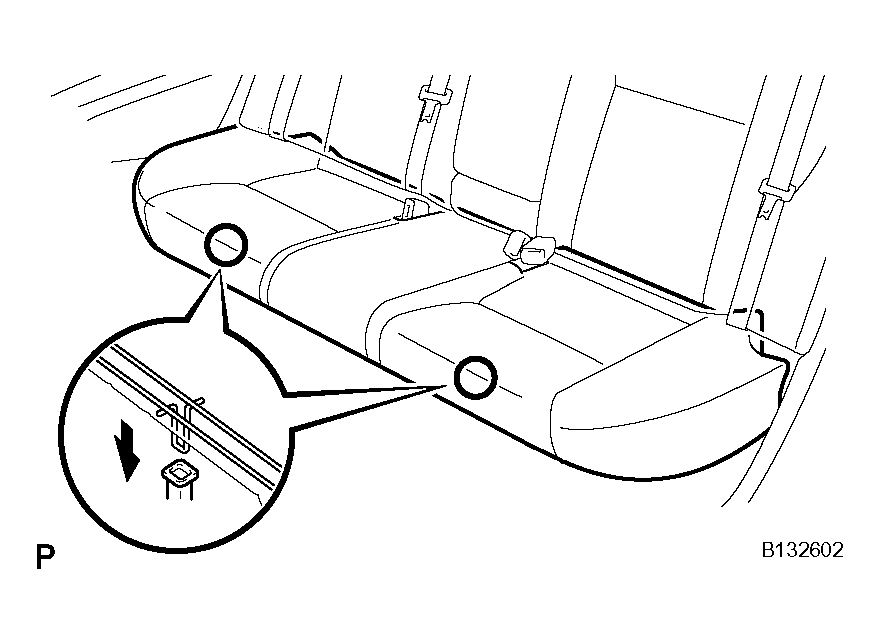

  Fig 5: Attaching Seat Cushion's Front Hooks To Vehicle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
