Power Mirror Control System
>>
Parts Location
Parts Location

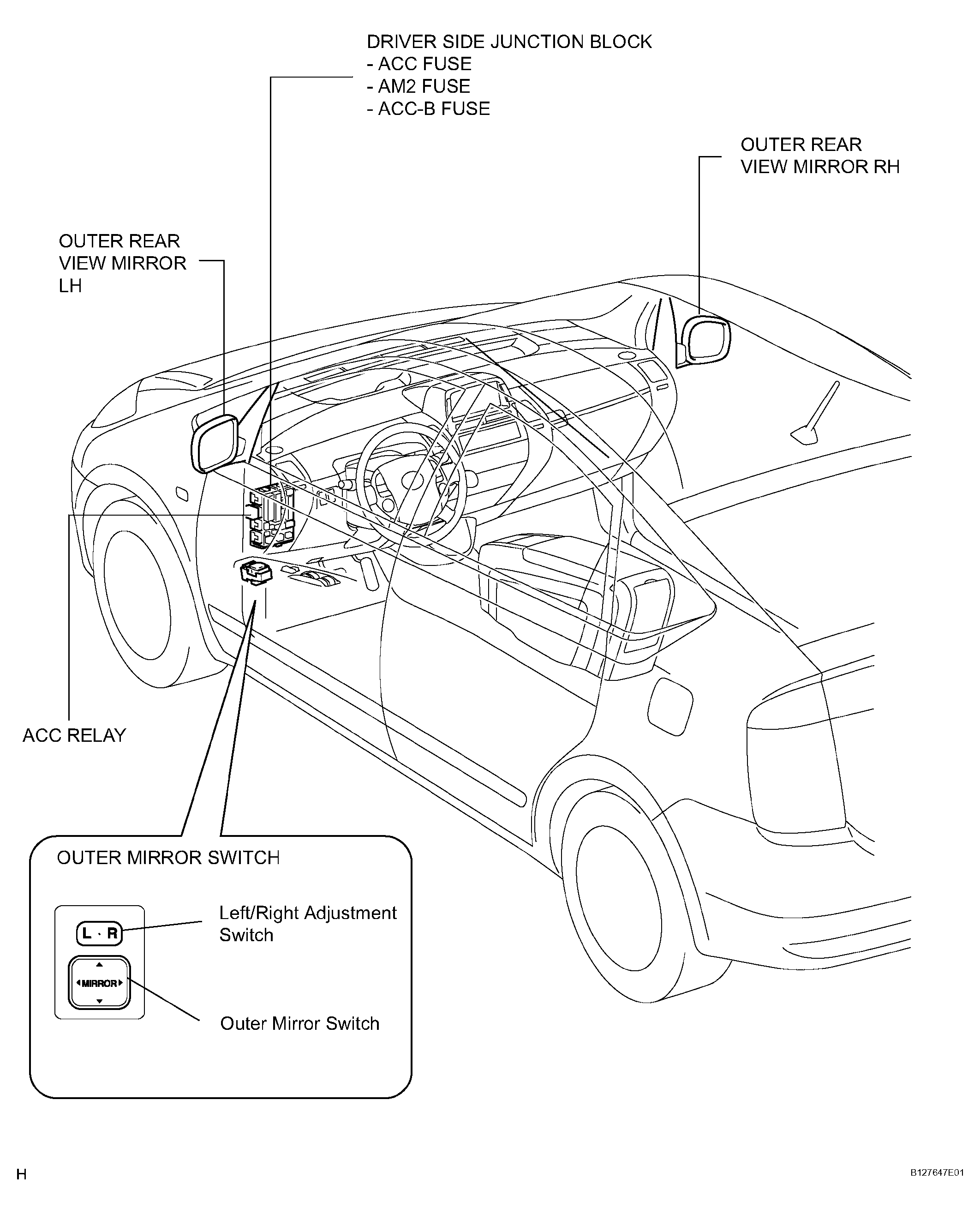

Fig 1: Locating Power Mirror Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
