Outer Rear View Mirror: Inspection

  1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
    1. Disconnect the mirror connector.
    2. Apply battery voltage and check the operation of the mirror.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION (1 OF 4)

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 5 (MV)
      Battery negative (-) --> Terminal 4 (M+)      		 Turns upward (A)
      Battery positive (+) --> Terminal 4 (M+)
      Battery negative (-) --> Terminal 5 (MV)      		 Turns downward (B)
      Battery positive (+) --> Terminal 3 (MH)
      Battery negative (-) --> Terminal 4 (M+)      		 Turns left (C)
      Battery positive (+) --> Terminal 4 (M+)
      Battery negative (-) --> Terminal 3 (MH)      		 Turns right (D)

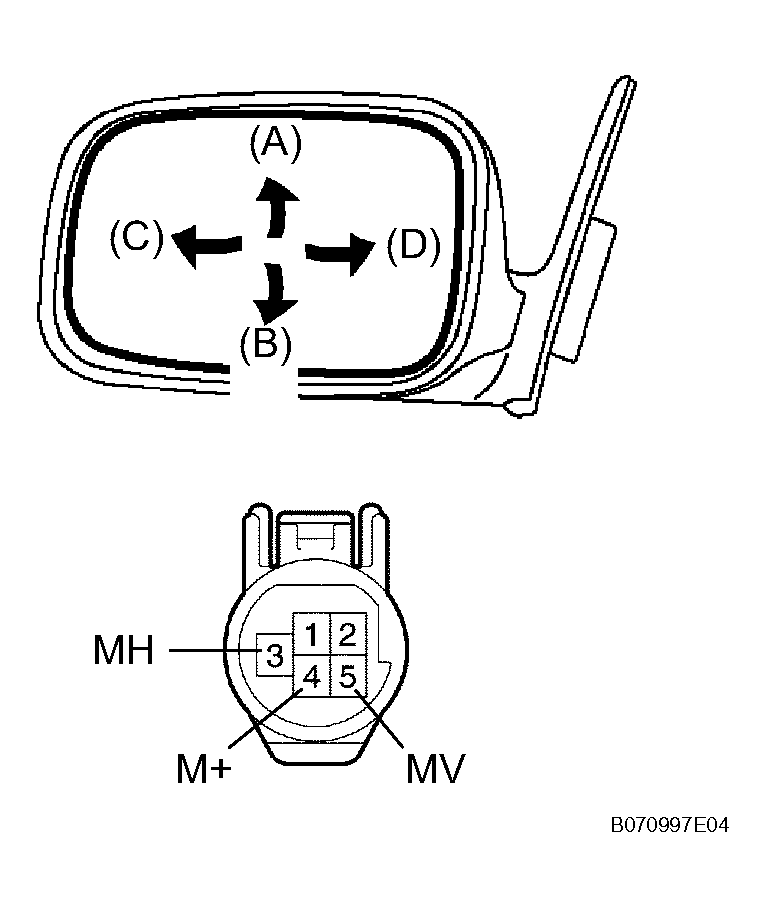

      Fig 1: Inspecting Outer Rear View Mirror Assembly LH
      G04476866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the mirror assembly.

    3. Apply battery voltage to the mirror terminals and check the operation of the mirror heater.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION (2 OF 4)

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 2 (M+)
      Battery negative (-) --> Terminal 1 (M-)      		 Mirror becomes warm

      If the result is not as specified, replace the mirror assembly.

      Fig 2: Identifying Outer Rear View Mirror Assembly Connectors
      G04476867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
    1. Disconnect the mirror connector.
    2. Apply battery voltage and check the operation of the mirror.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION (3 OF 4)

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 5 (MV)
      Battery negative (-) --> Terminal 4 (M+)      		 Turns upward (A)
      Battery positive (+) --> Terminal 4 (M+)
      Battery negative (-) --> Terminal 5 (MV)      		 Turns downward (B)
      Battery positive (+) --> Terminal 3 (MH)
      Battery negative (-) --> Terminal 4 (M+)      		 Turns left (C)
      Battery positive (+) --> Terminal 4 (M+)
      Battery negative (-) --> Terminal 3 (MH)      		 Turns right (D)

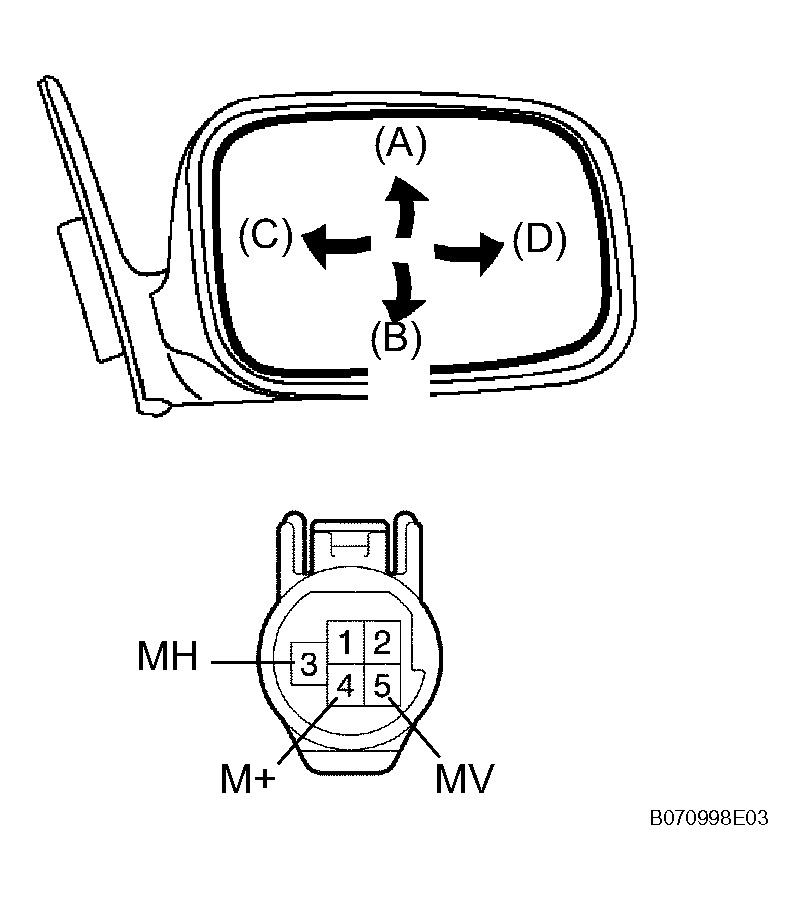

      Fig 3: Inspecting Outer Rear View Mirror Assembly RH
      G04476868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the mirror assembly.

    3. Apply battery voltage to the mirror terminals and check the operation of the mirror heater.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION (4 OF 4)

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 2 (M+)
      Battery negative (-) --> Terminal 1 (M-)      		 Mirror becomes warm

      If the result is not as specified, replace the mirror assembly.

      Fig 4: Inspecting Outer Rear View Mirror Assembly Connectors
      G04476869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
