Outer Mirror Switch: Inspection
- INSPECT OUTER MIRROR SWITCH ASSEMBLY

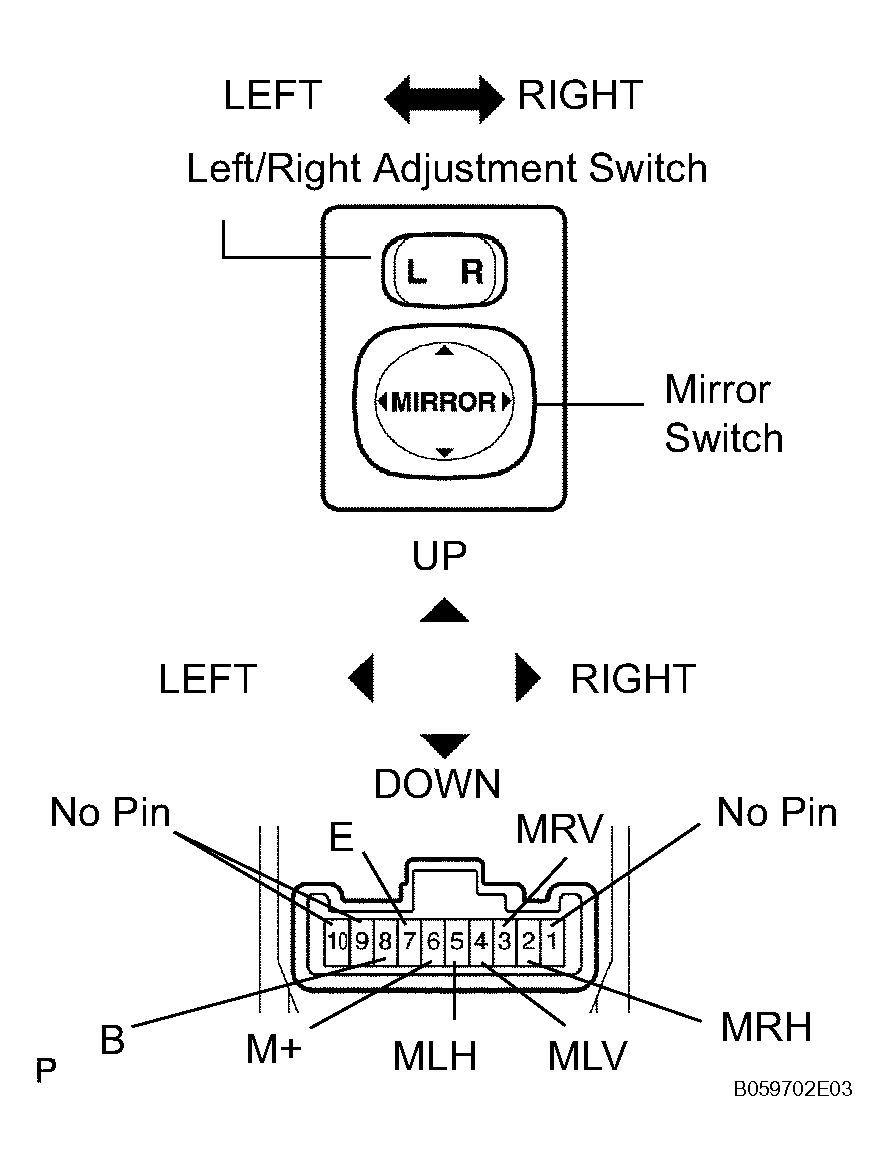

- The L position of the left/right adjustment switch: Measure the resistance of the mirror switch.
Standard resistance (for left side)
TERMINALS RESISTANCE SPECIFICATION (FOR LEFT SIDE)Tester Connection Switch Condition Specified Condition 4 (MLV) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 4 (MLV) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 5 (MLH) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 5 (MLH) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the switch assembly.
- The R position of the left/right adjustment switch: Measure the resistance of the mirror switch.
Standard resistance (for right side)
TERMINALS RESISTANCE SPECIFICATION (FOR RIGHT SIDE)Tester Connection Switch Condition Specified Condition 3 (MRV) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 3 (MRV) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 2 (MRH) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 2 (MRH) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the switch assembly.
- The L position of the left/right adjustment switch: Measure the resistance of the mirror switch.
