Only Driver Door LOCK / UNLOCK Functions do not Operate: Wiring Diagram

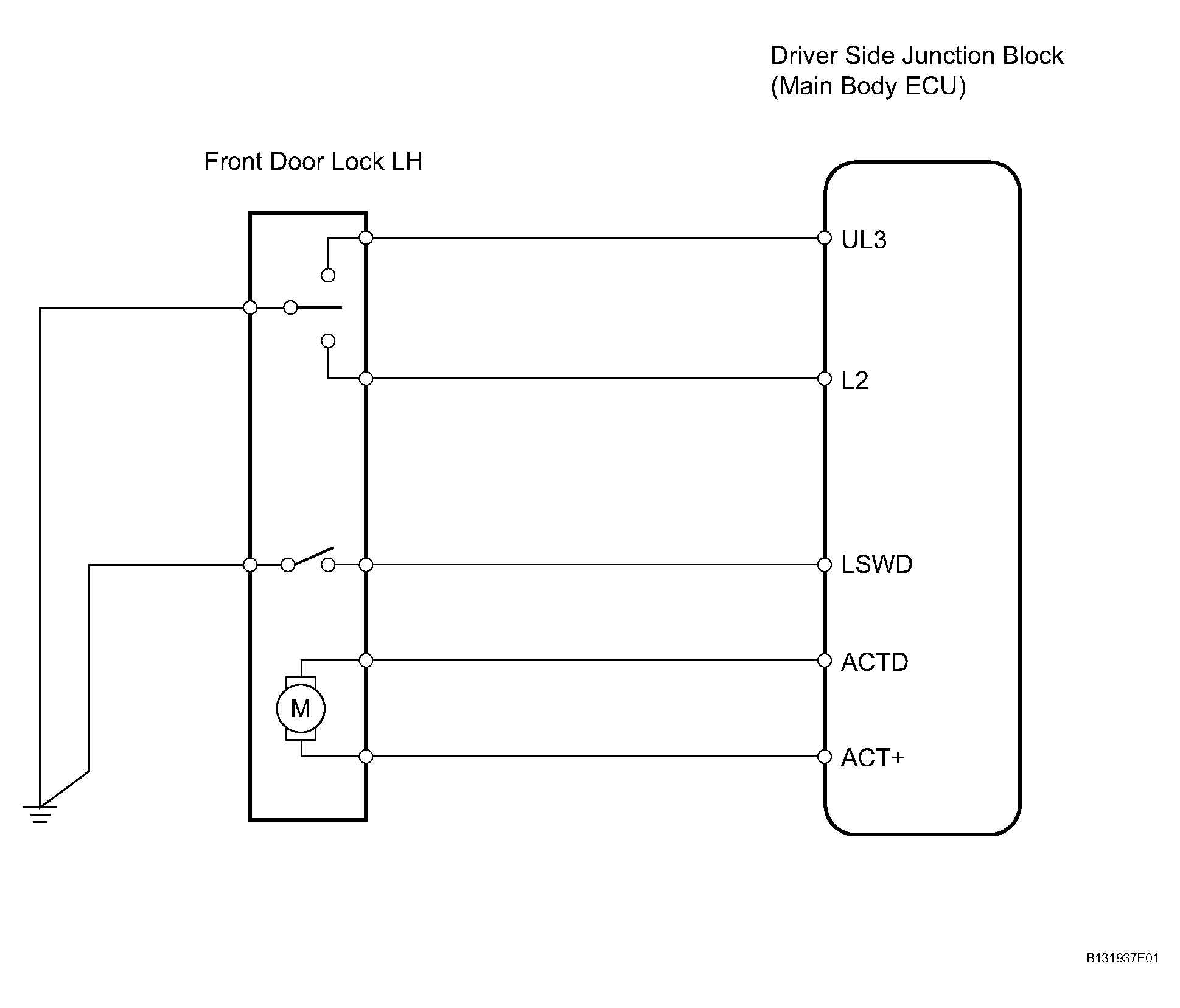

Fig 1: Driver Door Lock / Unlock - Wiring Diagram

G04475999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
