Speaker Circuit: Wiring Diagram

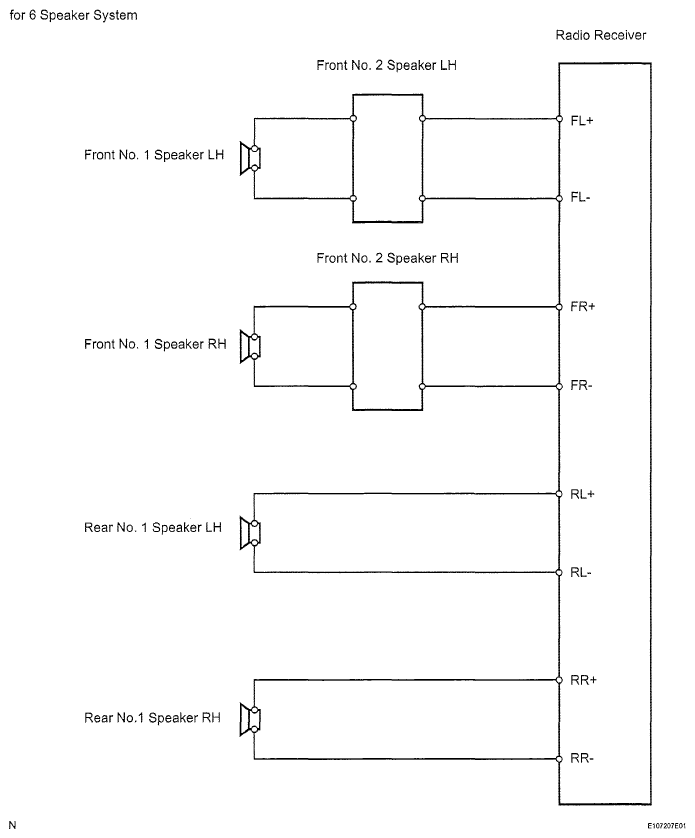

Fig 1: Short In Speaker Circuit - Wiring Diagram (1 Of 3)
G05189826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

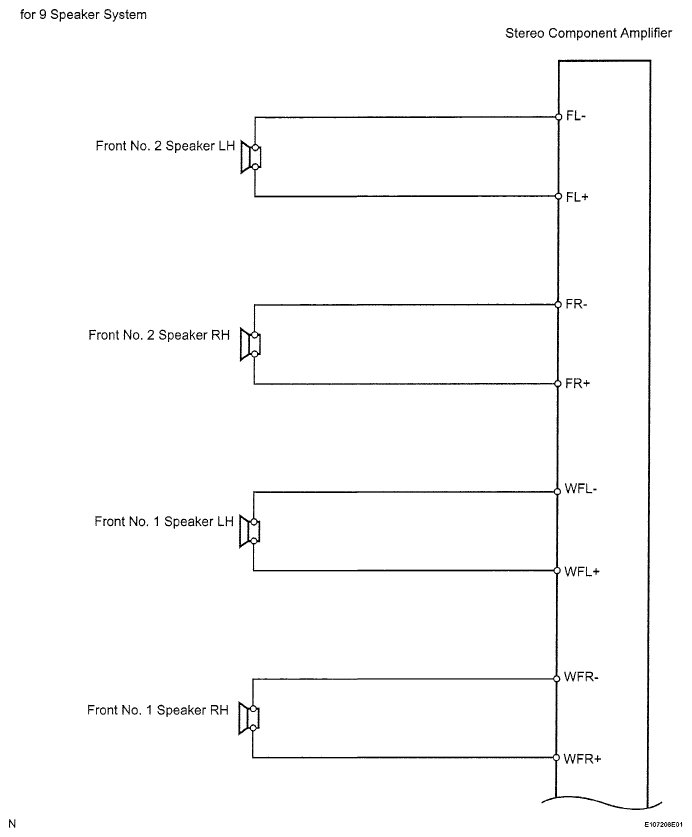

Fig 2: Short In Speaker Circuit - Wiring Diagram (2 Of 3)
G05189827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

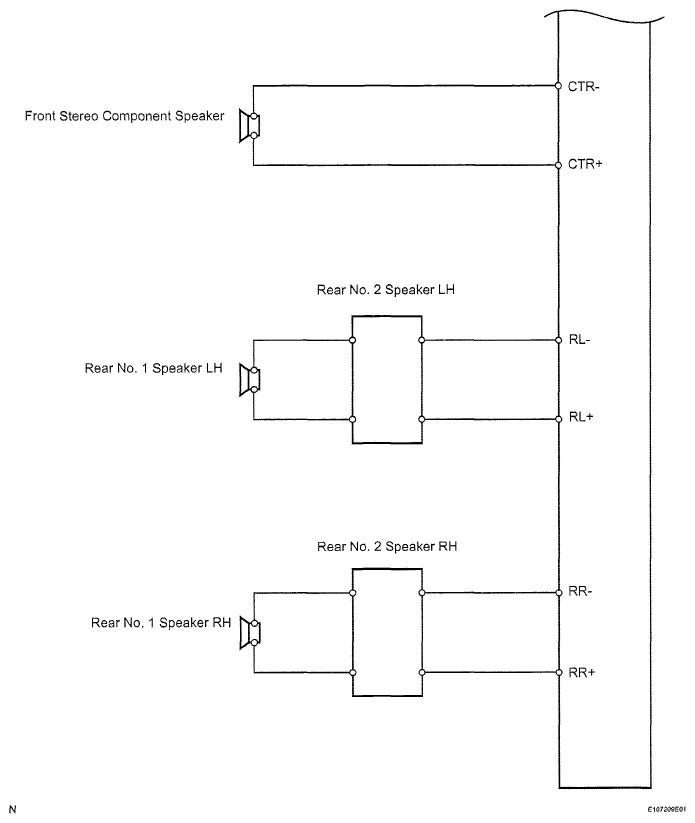

Fig 3: Short In Speaker Circuit - Wiring Diagram (3 Of 3)
G05189828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
