Low Pitched Horn
>>
Components
Low Pitched Horn: Components

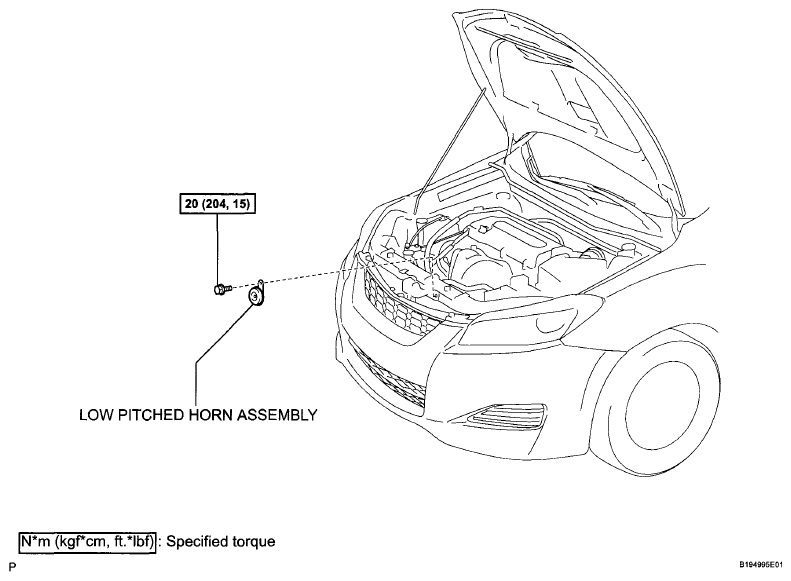

Fig 1: Low Pitched Horn Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
