Rear Wiper and Washer: Notes

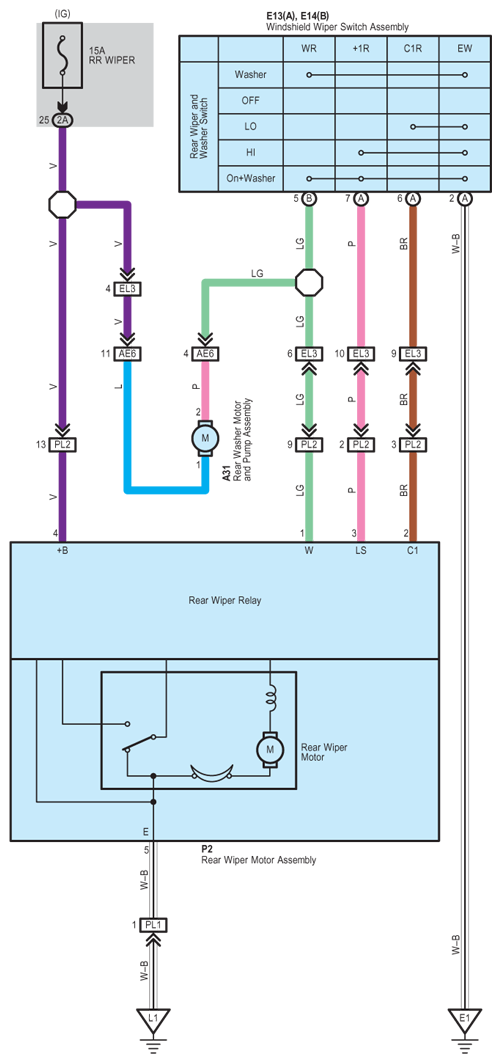

Fig 1: Rear Wiper And Washer - Circuit Diagram

G07606264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
