Valve Body Assembly: Inspection

  1. INSPECT SHIFT SOLENOID VALVE SL3
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve SL3.

    2. Connect a positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve SL3.

      Fig 1: Inspecting Shift Solenoid Valve SL3
      G06011464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT SHIFT SOLENOID VALVE SLT
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve SLT.

    2. Connect a positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve SLT.

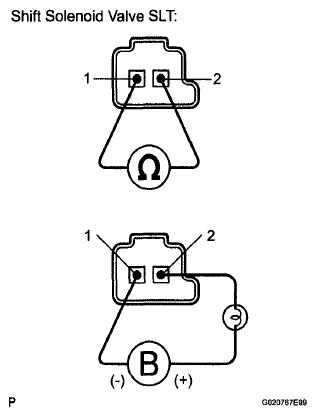

      Fig 2: Inspecting Shift Solenoid Valve SLT
      G06011465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT SHIFT SOLENOID VALVE S4
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      Solenoid Connector (S4) - Solenoid Body (S4) 20°C (68°F) 11 to 15 Ω

      If the value is not as specified, replace the shift solenoid valve S4.

    2. Connect a positive (+) lead of the battery to the terminal of the solenoid connector, and a negative (-) lead of the battery to the solenoid body and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

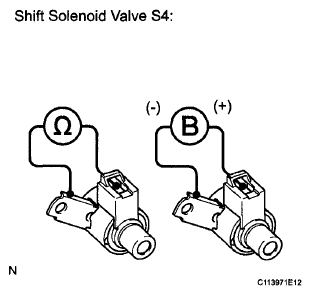

      Fig 3: Inspecting Shift Solenoid Valve S4
      G06011466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve S4.

  4. INSPECT SHIFT SOLENOID VALVE SR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      Solenoid Connector (SR) - Solenoid Body (SR) 20°C (68°F) 11 to 15 Ω

      If the value is not as specified, replace the shift solenoid valve SR.

    2. Connect a positive (+) lead of the battery to the terminal of the solenoid connector, and a negative (-) lead of the battery to the solenoid body and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

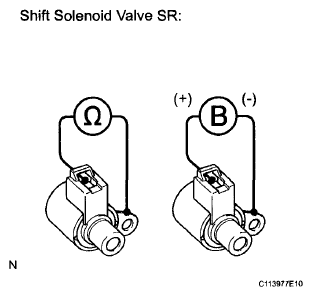

      Fig 4: Inspecting Shift Solenoid Valve SR
      G06011467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve SR.

  5. INSPECT SHIFT SOLENOID VALVE DSL
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      Solenoid Connector (DSL) - Solenoid Body (DSL) 20°C (68°F) 11 to 13 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead of the battery to the terminal of the solenoid connector, and a negative (-) lead of the battery to the solenoid body DSL and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

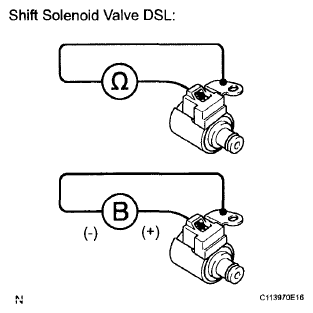

      Fig 5: Inspecting Shift Solenoid Valve DSL
      G06011468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve DSL.

  6. INSPECT SHIFT SOLENOID VALVE SL2
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve SL2.

    2. Connect a positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve SL2.

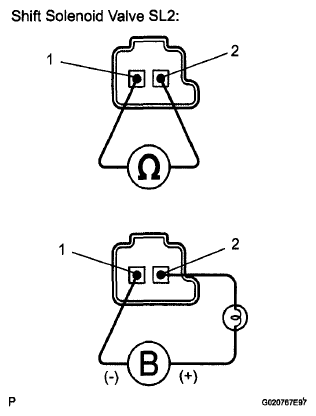

      Fig 6: Inspecting Shift Solenoid Valve SL2
      G06011469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT SHIFT SOLENOID VALVE SL1
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve SL1.

    2. Connect a positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, and check the operation of the valve.
      NOTE: When using battery voltage during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

      OK: The solenoid valve makes an operating sound  .

      If the operation cannot be done as specified, replace the shift solenoid valve SL1.

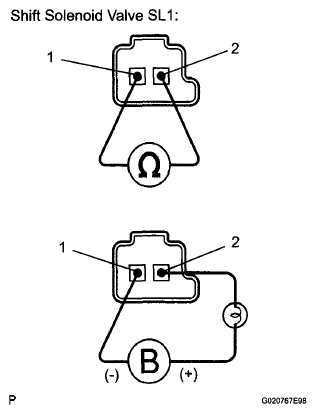

      Fig 7: Inspecting Shift Solenoid Valve SL1
      G06043167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
