Park / Neutral Position Switch: Components

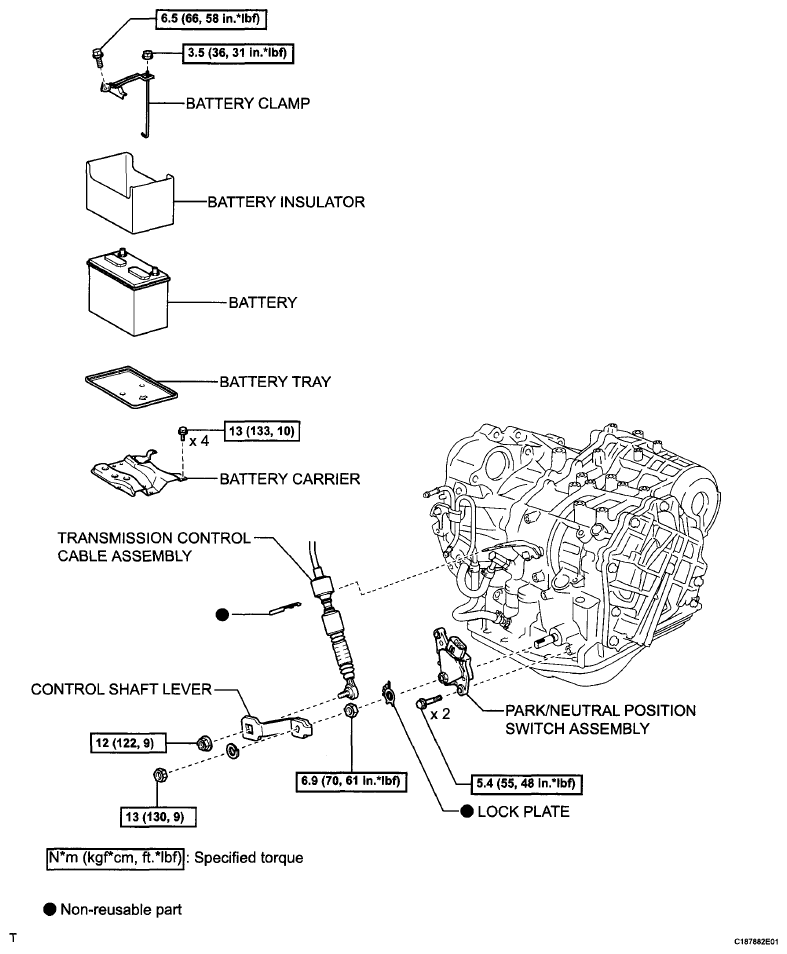

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications

G06043825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
