INSTALL DUTY VACUUM SWITCHING VALVE
1. Install the duty vacuum switching valve with the screw.
  Torque: 3.4 N*m (35 kgf*cm, 30 in.*lbf)

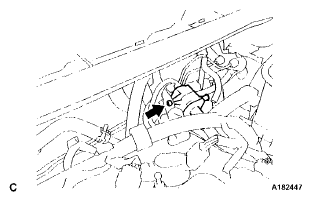

  Fig 1: Locating Duty Vacuum Switching Valve Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the duty vacuum switching valve connector, 2 vacuum hoses and wire harness clamp.
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )

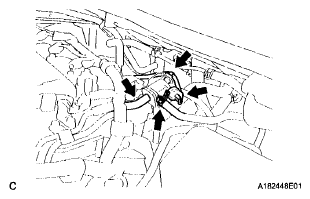

Fig 2: Locating Duty Vacuum Switching Valve Connector, Vacuum Hoses And Wire Harness Clamp
