Water Pump: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL WATER PUMP ASSEMBLY

Align the protrusion of a new water pump gasket with the cutout in the timing chain cover and install the gasket to the groove of the timing chain cover.
HINT:

Be sure to clean the contact surfaces.

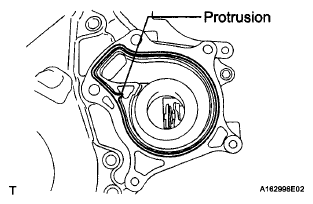

Fig 1: Aligning Protrusion Of Water Pump Gasket With Cutout In Timing Chain Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the water pump assembly to the timing chain cover with the 5 bolts.

Torque: Bolt A

26 N*m (260 kgf*cm, 19 ft.*lbf)

Bolt B

24 N*m (245 kgf*cm, 18 ft.*lbf)

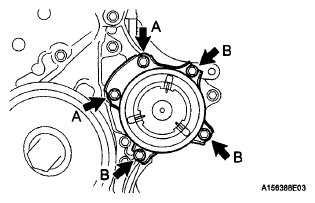

Fig 2: Locating Water Pump Assembly Bolts

G06009367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt Length

BOLT LENGTH

Item	Length
Bolt A	35 mm (1.38 in.)
Bolt B	18 mm (0.709 In.)

INSTALL GENERATOR ASSEMBLY (See INSTALLATION )
INSTALL V-RIBBED BELT (See INSTALLATION )
ADJUST V-RIBBED BELT (See INSTALLATION )
INSPECT V-RIBBED BELT (See ON-VEHICLE INSPECTION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See REPLACEMENT )
INSPECT FOR COOLANT LEAK (See ON-VEHICLE INSPECTION )
INSTALL ENGINE UNDER COVER RH
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )
