Exhaust Pipe And Catalytic Converter: Components

WARNING: This page is about a different variant/trim than selected.

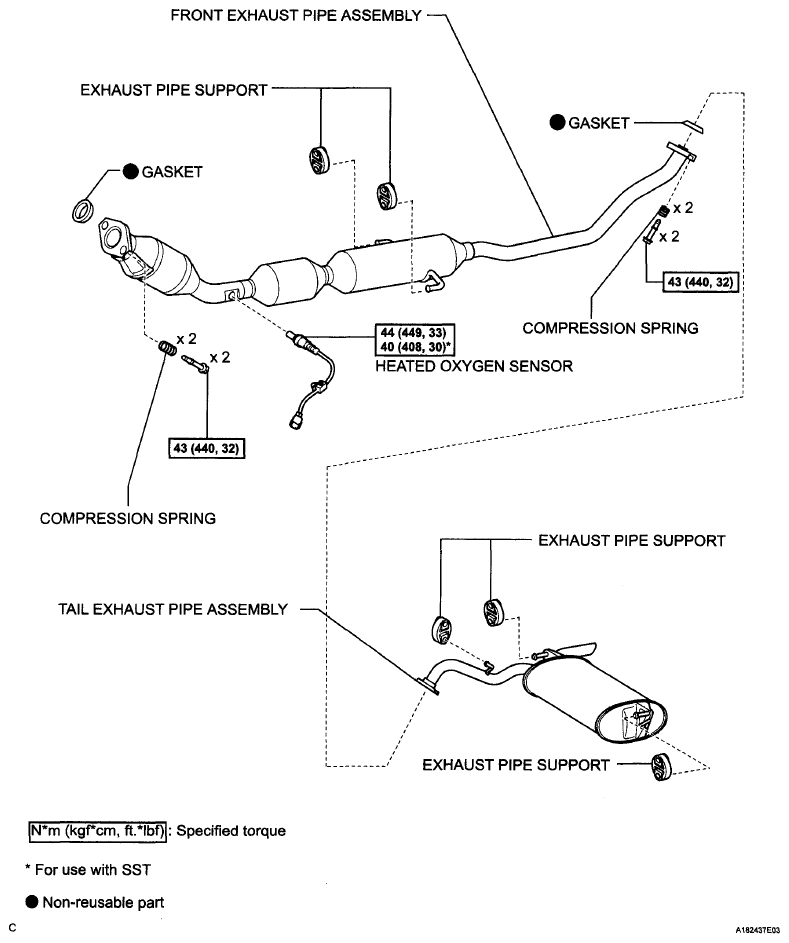

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications
G06042612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
