Fuel Pressure Pulsation Damper: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G06041820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

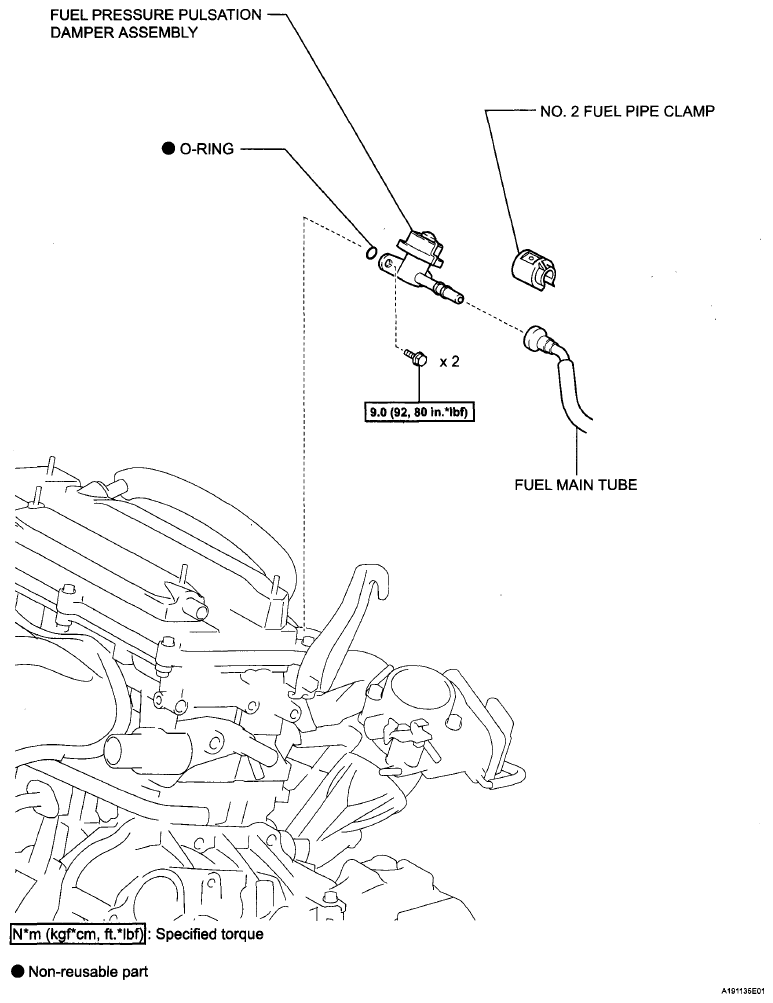

Fig 2: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
G06041865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
