Window Defogger System
>>
Parts Location
Parts Location

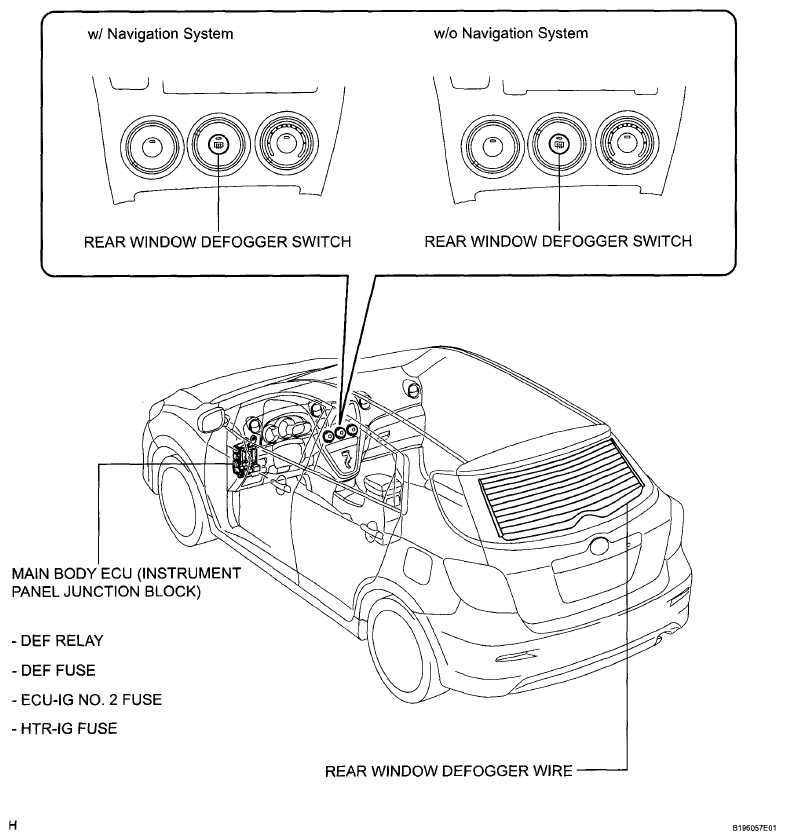

Fig 1: Identifying Window Defogger System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
