Front Lower Ball Joint: Components

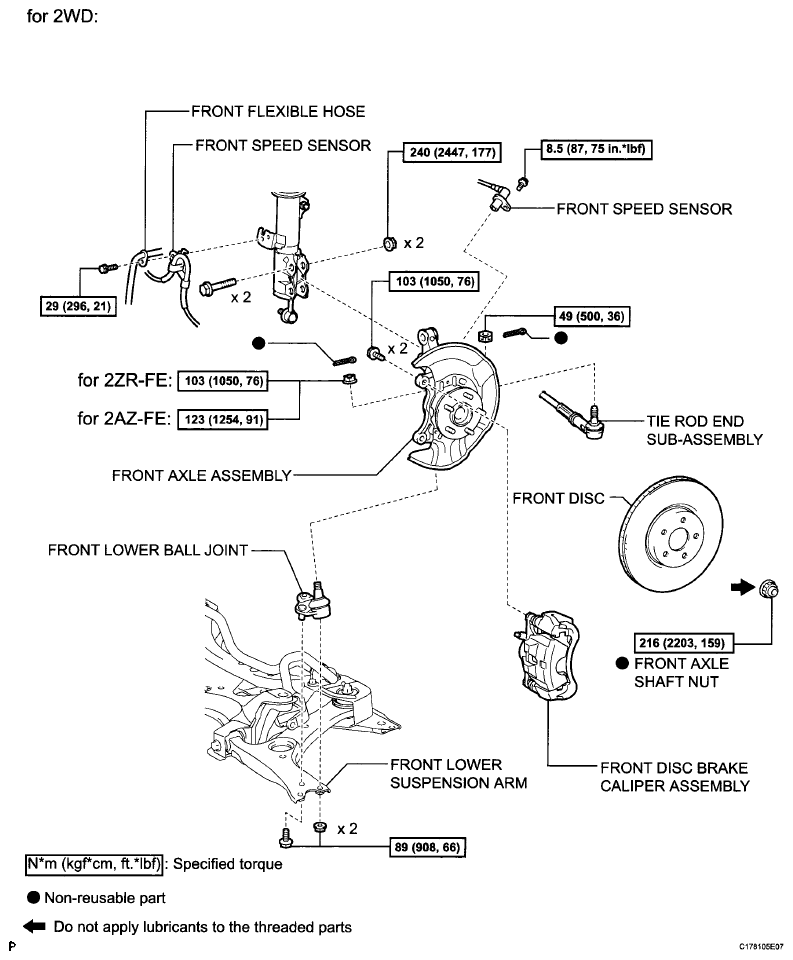

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications (1 Of 2)
G06034552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

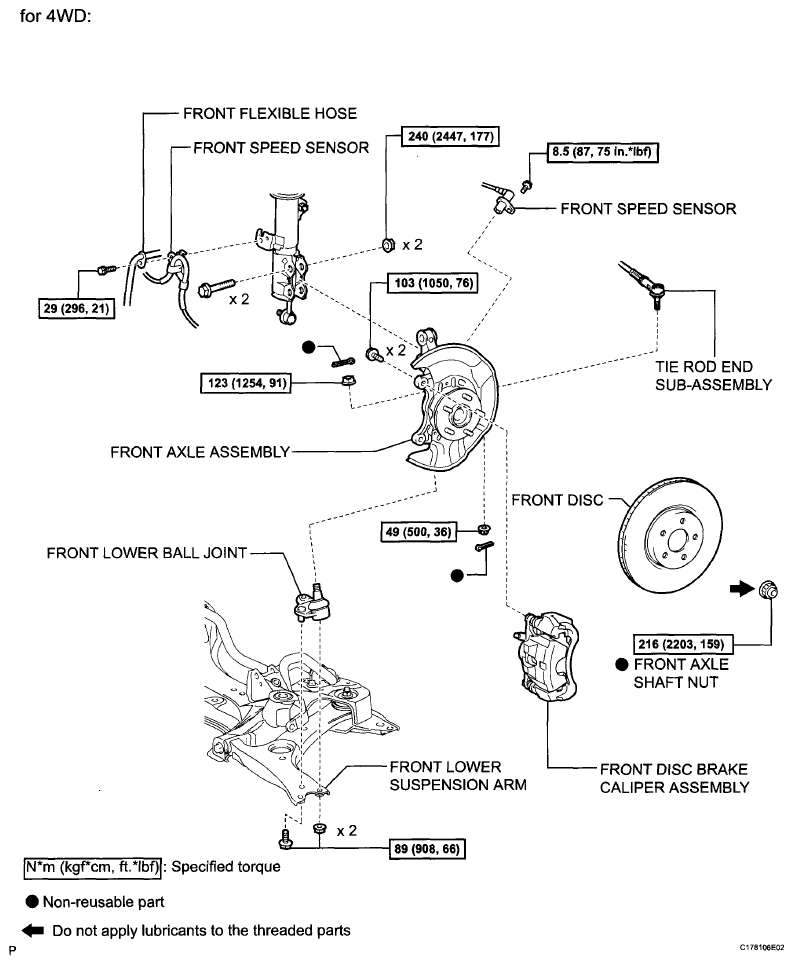

Fig 2: Front Lower Ball Joint Replacement Components With Torque Specifications (2 Of 2)
G06034553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
