Child Restraint Seat Tether Anchor: Components

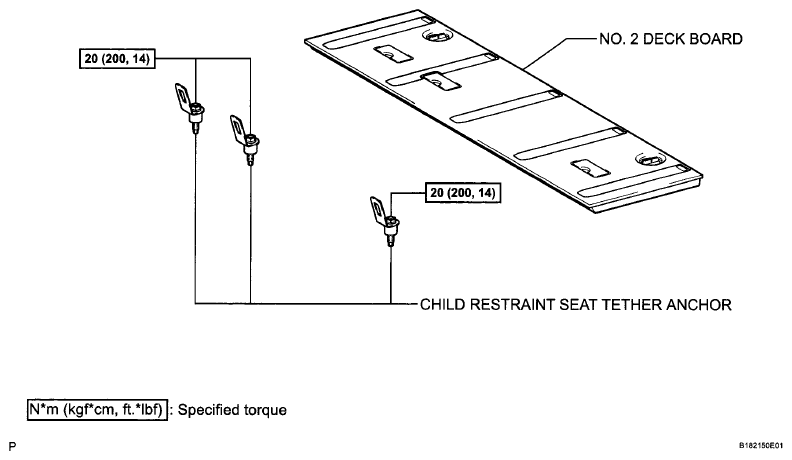

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications

G06037399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
